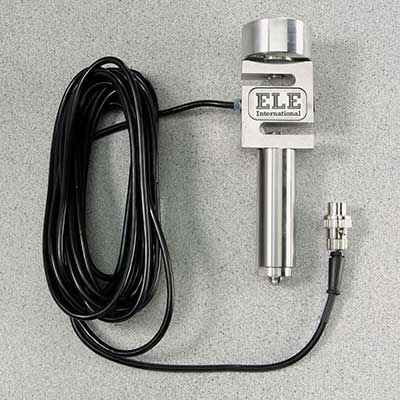

S-Type Load Cell

• Wide range of capacities to choose from.
• Rugged, sealed construction.
• Easily installs on load frames.
• Supplied complete with calibration certificate and 5-pin DIN type connector for connection to the ADU.

ELE S-Type Load Cells provide an economical means of obtaining accurate load readings during unconfined compression, triaxial and CBR test applications. They are supplied complete with all mounting hardware, 5-pin DIN type connector and calibration certificate.

S-Type Load Cell 500 lb Capacity

(2.2 kN) capacity. Net wt. 1 lb. (0.45 kg). info »
27-1581

S-Type Load Cell 10,000 lb Capacity

(44.4 kN) capacity. Net wt. 3 lbs. (1.3 kg). info »
27-1587

S-Type Load Cell 2,000 lb Capacity

(8.9 kN) capacity. Net wt. 1 lb. (0.45 kg).

info »
27-1583
