Upgrade your ELE compression machines to enjoy the features of the ADR Touch and ADR Auto V2.0 range.

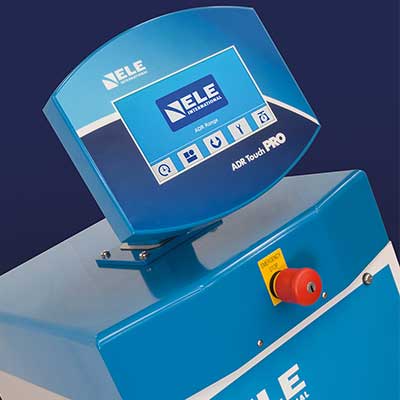

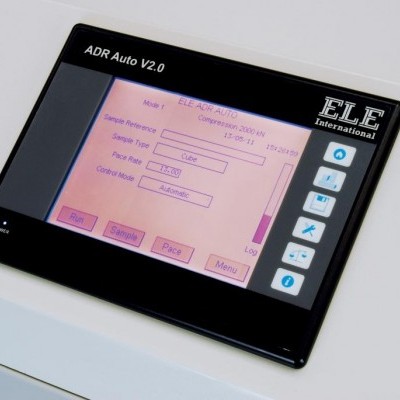

Console Head Assembly, upgrade ADR Auto V2.0 to ADR Touch Control PRO

For 220-240V, 50/60Hz.

info »
37-4886/01

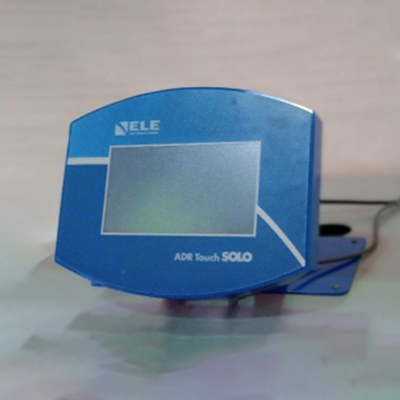

ADR Touch SOLO Head Kit to upgrade manual compression machines

Following the introduction of the new range of ADR Touch compression machines, ELE are pleased to announce the release of an upgrade package for existing machines.

This package is suitable for a wide range of ELE manually-controlled machines in service (contact our service department for details) and in most cases can fit directly to the existing machine.

Supplied complete in colour matched housing with all fittings and new replacement high quality pressure transducer this system enables users to take advantage of the latest touch screen technology plus enhanced data facilities.

info »
37-4950/09

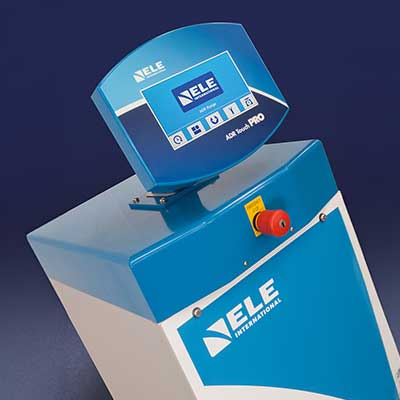

ADR Touch Control PRO Console

Complete ADR Touch Control PRO console with hose/oil, ready to attach to an ADR frame.

For 220V 60Hz.

info »
37-4881/06

ADR Touch SOLO Head Kit to upgrade manual compression machines

Following the introduction of the new range of ADR Touch compression machines, ELE are pleased to announce the release of an upgrade package for existing machines.

This package is suitable for a wide range of ELE manually-controlled machines in service (contact our service department for details) and in most cases can fit directly to the existing machine.

Supplied complete in colour matched housing with all fittings and new replacement high quality pressure transducer this system enables users to take advantage of the latest touch screen technology plus enhanced data facilities.

* Includes sensor and all cables *

• New touch screen user-friendly interface to reduce set-up and training time.
• Data storage for thousands of results.
• USB data transfer to PC and RS232C printer output.
• High accuracy and test repeatability.
• Select your language for screen prompts: English, Spanish, Portuguese or French.

The ADR Advanced Digital Readout incorporates the latest in microprocessor technology. Its advanced facilities for data acquisition, calculation and presentation provide a very effective upgrade path for your existing compression testing machines.
Procedures are easily executed on the touch-button data entry keypad with results viewed on the large, backlit LCD display.

Accurate load pacing is assured by means of the pace deviation bar graph incorporated into the display. The stress is calculated automatically at specimen failure and then displayed in engineering units. Automatic storage for data for 500 tests is possible. Using the serial RS232C communication port, data can be sent to personal
computers or printers for hard copy printout of the tests.

info »
37-4990/09

ADR Touch Control PRO Console

Complete ADR Touch Control PRO console with hose/oil, ready to attach to an ADR frame.

For 110V 60Hz

info »
37-4881/02

ADR Touch Control PRO Console

Complete ADR Touch Control PRO console with hose/oil, ready to attach to an ADR frame.

For 220 – 240 V, 50 Hz, 1 ph.

info »
37-4881/01

ADR Touch PRO Head Kit including mountings and pressure transmitter, 100- 240V, 50/60Hz

Following the introduction of the new range of ADR Touch compression machines, ELE are pleased to announce the release of an upgrade package for existing machines.

This package is suitable for a wide range of ELE manually-controlled machines in service (contact our service department for details) and in most cases can fit directly to the existing machine.

Supplied complete in colour matched housing with all fittings and new replacement high quality pressure transducer this system enables users to take advantage of the latest touch screen technology plus enhanced data facilities.

* Includes sensor and all cables *

• New touch screen user-friendly interface toreduce

set-up and training time.

• Data storage for thousands of results.

• USB data transfer to PC and RS232C printer output.

• High accuracy and test repeatability.

• Select your language for screen prompts:English,

Spanish, Portuguese or French.

The ADR Advanced Digital Readout incorporates the latest in microprocessor technology. Its advanced facilities for data acquisition, calculation and presentation provide a very effective upgrade path for your existing compression testing machines.

Procedures are easily executed on the touch-button data entry keypad with results viewed on the large,backlit LCD display.

Accurate load pacing is assured by means of the pace deviation bar graph incorporated into the display. The stress is calculated automatically at specimen failure and then displayed in engineering units. Automatic storage for data for 500 tests is possible. Using the serial RS232C communication port, data can be sent to personal computers or printers for hard copy printout of the tests.

info »
Code: 37-4992/10

1000/500kN Motorised Compression/Tension Machine (complete with grips) 220-240V 50/60Hz 1Ph.

Compression testing of concrete cubes and cylinders

• Calibration in compression is accurate to 1% of indicated load, satisfying BS EN ISO 7500-1; ASTM E4

• Self-aligning upper platen for compression tests

• Easily fitted grips for tension testing

The load frame is of high quality steel construction with a fixed upper head carrying a ball-seated platen. The ram carrying the lower platen is contained in the base of the frame and is protected by a shroud.Sufficient clearance between the platens allows the compression testing of concrete cylinders up to 160 mm diameter by 320 mm long. To allow for the compression testing of concrete cubes, a range of distance pieces is available.

Tension tests on steel reinforcing bars are conducted by replacing the platens with special grips. As standard the machine is supplied with the following size grips for testing bars, 10 mm, 12 mm, 20 mm,and 25 mm diameter. The machine is motorised,incorporating a change-over lever to select either compression or tension output from the pump.



Standards BS EN ISO 7500-1, ASTM E4

info »
Code: 36-1410/01
