Our list of current Direct/Residual Shear Apparatus products are listed below. If you cannot find what you are looking for, please contact us and we will try our best to help you.

16 Ton Weight Set

Includes: two 1/16 ton, one 1/8 ton, one 1/4 ton, one 1/2 ton, one 1 ton and seven 2 ton weights.

info »
25-0544

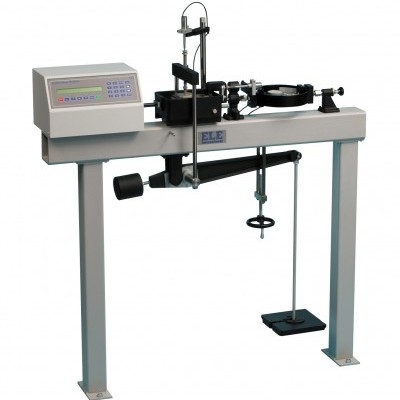

Digital Direct/Residual Shear Apparatus Complete with Lever Loading Assembly. 220-240V 50/60Hz 1Ph.

• Microprocessor control
• Large on-board LCD screen display
• Direct entry via touch sensitive keyboard
• Rapid approach and return to start datum
• Fully variable speed, 0.00001 to 9.99999 mm/minute
• Accepts specimens up to 100 mm square

The ELE Direct Shear Apparatus accepts specimens 60 mm, 100 mm square or 2.5 inches in diameter. The use of a microprocessor controlled drive system and keyboard entry gives the apparatus a wide range of features that include pause and speed reset during test, RS 232C interface, operator programming of speed and control functions, self test diagnostics and many other features. A return to start datum provides a positive means of reversing the shearbox when either preparing for a new test or continuing with residual testing procedures.

Safety forward/reverse travel limit switches are fitted as standard and monitored through the electronics system control.

The electronics are housed in a modern moulded shroud, which includes a large LCD display and keyboard entry. The apparatus is enclosed in a robustly constructed case, has been designed for floor mounting and is supplied complete with carriage, loading hanger and 10:1 lever loading device.

info »
26-2114/01

Digital Direct/Residual Shear Apparatus Complete with Lever Loading Assembly. 110-120V 50/60Hz 1Ph.

• Microprocessor control
• Large on-board LCD screen display
• Direct entry via touch sensitive keyboard
• Rapid approach and return to start datum
• Fully variable speed, 0.00001 to 9.99999 mm/minute
• Accepts specimens up to 100 mm square

The ELE Direct Shear Apparatus accepts specimens 60 mm, 100 mm square or 2.5 inches in diameter. The use of a microprocessor controlled drive system and keyboard entry gives the apparatus a wide range of features that include pause and speed reset during test, RS 232C interface, operator programming of speed and control functions, self test diagnostics and many other features. A return to start datum provides a positive means of reversing the shearbox when either preparing for a new test or continuing with residual testing procedures.

Safety forward/reverse travel limit switches are fitted as standard and monitored through the electronics system control.

The electronics are housed in a modern moulded shroud, which includes a large LCD display and keyboard entry. The apparatus is enclosed in a robustly constructed case, has been designed for floor mounting and is supplied complete with carriage, loading hanger and 10:1 lever loading device

info »
26-2114/02
