The Heat of Hydration Apparatus is manufactured to the requirements specified in BS 4550. It comprises a Dewar flask, an internally lagged case, a constant speed electric stirrer, filler funnel and a Beckman-type thermometer complete with reader.

Heat of Hydration Apparatus

Designed to determine the heat of hydration of cement to BS 4550.

Comprises of a dewar flask, internally lagged case, constant speed sitrrer and filter funnel.

Please note thermometer must be purchased seperately.

For 220 – 240 V AC, 50 Hz, 1 ph.

info »
38-4600/01

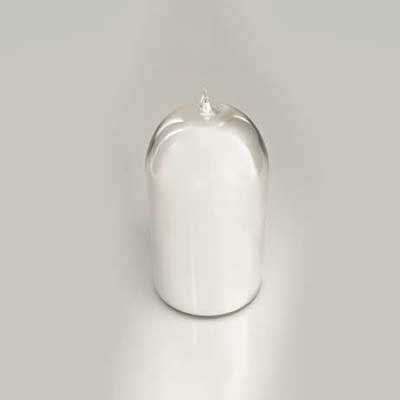

Dewar Flask

Spare.

info »
38-4600/10

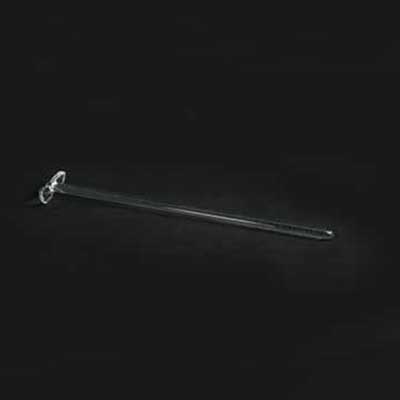

Glass Paddle for Stirrer

Spare.

info »
38-4600/13

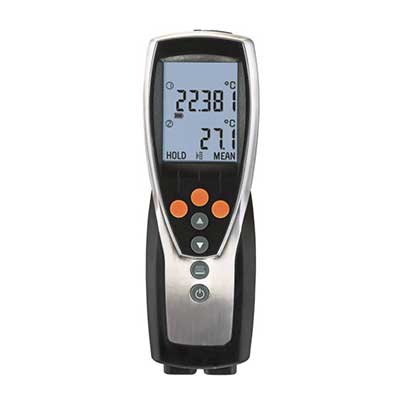

Digital Thermometer and Probe for 0.001 Dec C Resolution

  • For use with Heat of Hydration Apparatus 38-4600
  • With probe with resolution 0.001 Deg C
  • Calibration to ISO possible. Measuring range -80 to +300 Deg C

Up to 3 connectable sensors and a further 3 temperature sensors which can be connected wirelessly to the meter. Super-size memory for up to 10 000 readings; PC software and USB cable included. Extremely accurate sensor (optional) for a system accuracy of up to 0.05 °C.



info »
38-4600/15

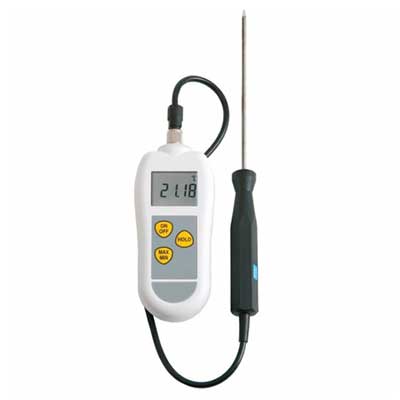

Digital Thermometer and Probe for 0.01 Dec C Resolution

  • For use with Heat of Hydration Apparatus 38-4600
  • With probe with resolution 0.01 Deg C
  • Measuring range -199.9 to +199.99 Deg C

Easy to read LCD display. Powered by three 1.5 volt AAA batteries that give a minimum of 2000 hours battery life.



info »
38-4600/16
