Our list of current Sample Preparation products are listed below. If you cannot find what you are looking for, please contact us and we will try our best to help you.

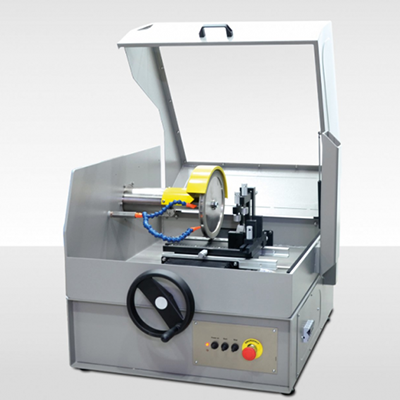

The core trimmer and cut-off machine is used for obtaining rock samples perfectly machined (cubes, prisms etc) from irregular rock or core pieces.
70-0251/01 is supplied complete with a vice to hold irregular pieces firmly in place up to 70 x 140 mm approx. A second V shaped vice is used to cut cores to a maximum size 75 mm dia. x 140 mm height. Longer cores can be obtained by turning the samples upside down in the vice. The machine also include cooling water inlet and transparent cover, conforming to CE requirements, with switch that stops automatically the machine when opened.
Supplied with cooling/circulation pump, Diamond abrasive cutting blade and double faced cup wheel.
info »

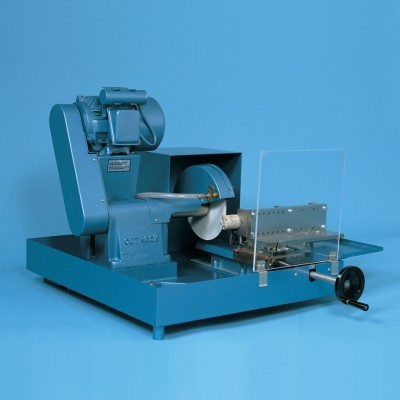

The core trimmer and cut-off machine is used for obtaining rock samples perfectly machined (cubes, prisms etc) from irregular rock or core pieces.
70-0251/06 is supplied complete with a vice to hold irregular pieces firmly in place up to 70 x 140 mm approx. A second V shaped vice is used to cut cores to a maximum size 75 mm dia. x 140 mm height. Longer cores can be obtained by turning the samples upside down in the vice. The machine also include cooling water inlet and transparent cover, conforming to CE requirements, with switch that stops automatically the machine when opened.
Supplied with cooling/circulation pump, Diamond abrasive cutting blade and double faced cup wheel.
info »

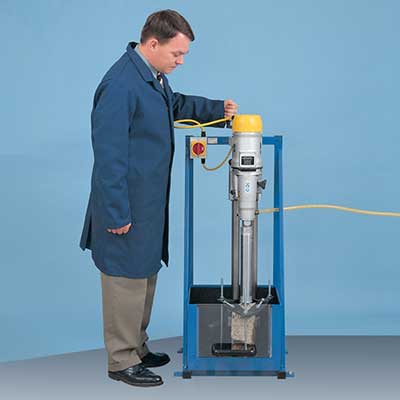

Cores may be cut from regular or irregular samples of rock or other material for end preparation prior to strength testing. Side guards and a drain tray provide protection against water spray and a sliding front allows access to the specimen clamp. The clamp provides maximum orientation for securing irregular block samples.
info »

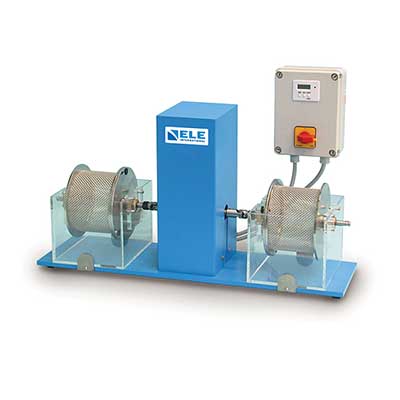

This equipment has been developed to assess the durability of rock to weakening and disintegration when subjected to the simulated effects of climatic slaking.
The rock samples are dried and then submitted to wear stress inside a drum which is rotated in water. The test is repeated and the wear is given by the loss of weight in the sample. The system incorporates a motor drive unit mounted on a baseplate which revolves two (or up to four) Stainless Steel drums manufactured from 2 mm mesh, 140 mm diameter x 100 mm long. The tanks are filled with water to a level 20 mm below the drum axis. A digital timer automatically stops the motor after the pre-set time. The equipment is supplied complete with two drums with tanks.
info »

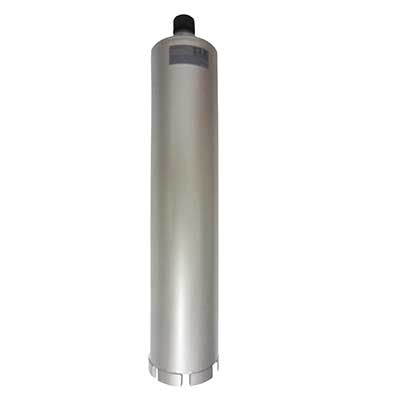

Hole (outside) diameter: 96 mm
Core (inside) diameter: 63.5 mm
info »
Double faced cup wheel 200 mm diameter x 16 mm thick for 70-0251/01
info »
