70-0095/01
Category:
Triaxial and Permeability
Sub Category:
N/A
Product Group:
Sample Preparation

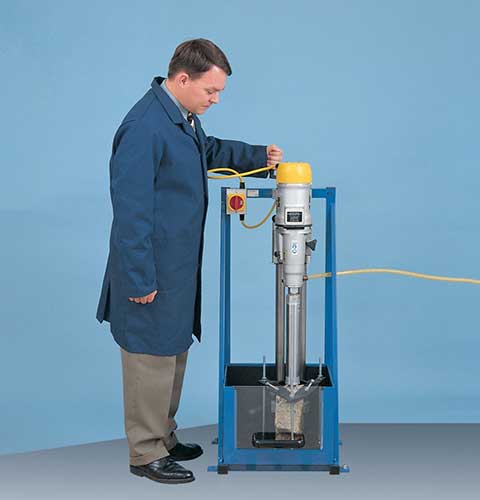

Cores may be cut from regular or irregular samples of rock or other material for end preparation prior to strength testing. Side guards and a drain tray provide protection against water spray and a sliding front allows access to the specimen clamp. The clamp provides maximum orientation for securing irregular block samples.
Supplied complete with 2 x NX Core Barrel. For 220–240 V AC, 50 Hz, 1 pH.
| Description | Rock Core Drill Supplied with 2 x NX Core Drill Bits |
| Power Supply | 220 - 240 V AC, 50/60 Hz, 1 ph |
| Dimensions (l x w x h) | 500 x 500 x 1160 mm |
| Drill Head Travel | 630 mm |
| Drill Speeds | 350 and 900 rpm |
| Weight | 80 kg |
