Core Trimmer and Cut Off Machine 230V, 50 Hz, 1 ph

« return

Core Trimmer and Cut Off Machine 230V, 50 Hz, 1 ph

70-0251/01

Category:

Triaxial and Permeability

Sub Category:

N/A

Product Group:

Sample Preparation

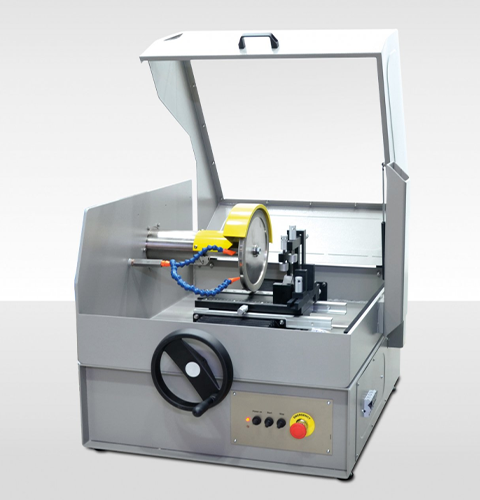

The core trimmer and cut-off machine is used for obtaining rock samples perfectly machined (cubes, prisms etc) from irregular rock or core pieces.

70-0251/01 is supplied complete with a vice to hold irregular pieces firmly in place up to 70 x 140 mm approx.  A second V shaped vice is used to cut cores to a maximum size 75 mm dia. x 140 mm height. Longer cores can be obtained by turning the samples upside down in the vice. The machine also include cooling water inlet and transparent cover, conforming to CE requirements, with switch that stops automatically the machine when opened.

Supplied with cooling/circulation pump, Diamond abrasive cutting blade and double faced cup wheel.

Description Core Trimmer and Cut Off Machine 230V, 50 Hz, 1 ph
