26-2114/02
Category:
Direct Shear and Vane Tests, Soils
Sub Category:
Direct Shear and Vane Tests
Product Group:
Direct/Residual Shear Apparatus, Direct/Residual Shear Apparatus
• Microprocessor control
• Large on-board LCD screen display
• Direct entry via touch sensitive keyboard
• Rapid approach and return to start datum
• Fully variable speed, 0.00001 to 9.99999 mm/minute
• Accepts specimens up to 100 mm square

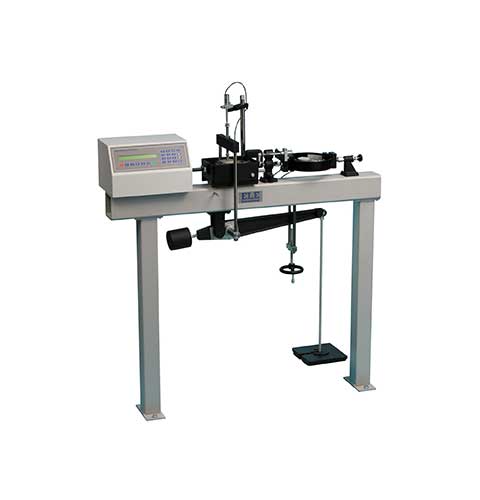

The ELE Direct Shear Apparatus accepts specimens 60 mm, 100 mm square or 2.5 inches in diameter. The use of a microprocessor controlled drive system and keyboard entry gives the apparatus a wide range of features that include pause and speed reset during test, RS 232C interface, operator programming of speed and control functions, self test diagnostics and many other features. A return to start datum provides a positive means of reversing the shearbox when either preparing for a new test or continuing with residual testing procedures.
Safety forward/reverse travel limit switches are fitted as standard and monitored through the electronics system control.
The electronics are housed in a modern moulded shroud, which includes a large LCD display and keyboard entry. The apparatus is enclosed in a robustly constructed case, has been designed for floor mounting and is supplied complete with carriage, loading hanger and 10:1 lever loading device
for 110 – 120 V AC, 50 – 60 Hz, 1 ph.
| Voltage Supply | 110-120V 50/60Hz |
| Description | Digital Direct/Residual Shear Apparatus |
| Vertical Load, lbf | 2,200 |
| ASTM D3080 | Yes |
| AASHTO T236 | Yes |
| Sample Size | Accepts either 2.42 ”, 2.5” diam.; 60 mm square samples using accessory shear box assemblies, not included. |
| Speed Range | Variable in either English or Metric units between 0.000001” (0.00001 mm) to 0.399999” (9.99999 mm) per minute. |
| Shear Force | 1,100lbf. (5.0 kN) maximum. |
| Vertical Load | 2,200 lbf. (10.0 kN) using 10:1 lever ratio. |
| Dimensions | 44.7” l. x 12 .6” w. x 49.6” h. (1,135 x 320 x 1,260 mm). |
| Amps | 1.6 |
| Watts | 26 |
| Weight | Net 181 lbs. (82 kg). |
26-2114/10
th the most recent requirements of ASTM D3080. The kit minimises the frictional force between the top and bottom sections of the cutting box.
26-2270
t Research Laboratory, England, and is available in hand or motorised versions. Stress is applied through the 12.7 x 12.7 mm vane by means of any one of four calibrated springs.
27-1551
rated output•Non-Linearity better than ± 0.03% of rated output•Supplied complete with 5-pin DIN type connector for connection to GDUIdeally suited for a wide range of applications, ELE S-type load cells provide high accuracy and minimum deformation. Various models are available, with the necessary adaptors, for use with ELE Triaxial Load Frames, Multiplex 50/Marshall Test 50/CBR Test 50 and Direct Shear machine.
26-2132
he lever loading device and the appropriate slotted weights
26-2197
als•Sample size 100 x 100mm x 25mm high meeting BS 1377•Incorporates PTFE faced box separation screws to reduce friction•Supplied complete with upper and lower porous plates and loading pad•Suitable for quick undrained or drained/residual tests.
26-2213
als•Sample size 2.5 inch dia x 1 inch height meeting ASTM D3080•Incorporates PTFE faced box separation screws to reduce friction•Supplied complete with upper and lower porous plates and loading pad•Suitable for quick undrained or drained/residual tests.
26-2181
als•Sample size 60 x 60mm x 25mm high meeting BS 1377•Incorporates PTFE faced box separation screws to reduce friction•Supplied complete with upper and lower porous plates and loading pad•Suitable for quick undrained or drained/residual tests
27-1689
ar Machines. •Ideally suited for use with GDU for accurate displacement measurements •Models available for use in consolidation, shear, CBR and triaxial test applications•Supplied complete with mounting hardware for specified productsDisplacement Transducers are used in consolidation, shear, CBR and triaxial test applications for accuratevdisplacement measurements. They are supplied complete with a 5-pin DIN type connector for direct connection to the GDU.
26-2114/01
• Microprocessor control• Large on-board LCD screen display• Direct entry via touch sensitive keyboard• Rapid approach and return to start datum• Fully variable speed, 0.00001 to 9.99999 mm/minute• Accepts specimens up to 100 mm squareThe ELE Direct Shear Apparatus accepts specimens 60 mm, 100 mm square or 2.5 inches in diameter. The use of a microprocessor controlled drive system and keyboard entry gives the apparatus a wide range of features that include pause and speed reset during test, RS 232C interface, operator programming of speed and control functions, self test diagnostics and many other features. A return to start datum provides a positive means of reversing the shearbox when either preparing for a new test or continuing with residual testing procedures.Safety forward/reverse travel limit switches are fitted as standard and monitored through the electronics system control.The electronics are housed in a modern moulded shroud, which includes a large LCD display and keyboard entry. The apparatus is enclosed in a robustly constructed case, has been designed for floor mounting and is supplied complete with carriage, loading hanger and 10:1 lever loading device.
26-3335

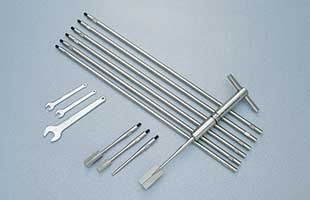

This instrument is an essential tool for civil engineers involved in site investigation work. The unit is supplied in kit form with a carrying case incorporating the measuring head, extension rods, vanes, etc. The measuring head comprises a T-handle that is spring-loaded against the extension rod adaptor. Weight 5.5 kg.
26-3346

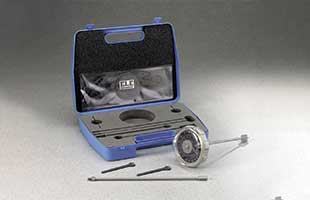

• Direct-reading scale with max-reading pointer.• Provides quick and accurate shear strength values of cohesive soils.• Lightweight carrying case for easy transport to the field.The Hand Vane Tester is an accurate and portable instrument used for the determination of in-situ shear strength of cohesive soils, either on-site or on undisturbed or remoulded samples in the laboratory.The instrument consists of a torque head with a direct-reading scale which is turned by hand. A non-return type pointer retains the test reading. A 19 mm (0.75”) diameter vane and 300 mm (11.8”) extension rod is supplied as standard.
