26-3335
Category:
Direct Shear and Vane Tests
Sub Category:
N/A
Product Group:
Inspection Vane

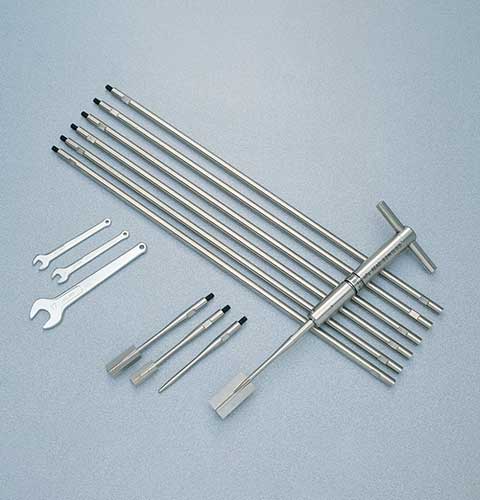

This instrument is an essential tool for civil engineers involved in site investigation work. The unit is supplied in kit form with a carrying case incorporating the measuring head, extension rods, vanes, etc. The measuring head comprises a T-handle that is spring-loaded against the extension rod adaptor. Weight 5.5 kg.
Range 0 to 260 kPa, in carrying case with 6 x 0.5 metre extension rods, 3 vanes, dummy vane and tools. Supplied complete with Calibration Certificate.
| Description | H60 Field Inspection Vane Tester |
26-2114/02

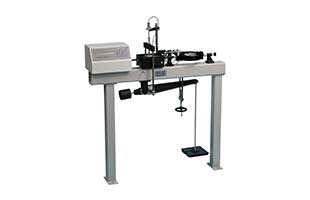

• Microprocessor control• Large on-board LCD screen display• Direct entry via touch sensitive keyboard• Rapid approach and return to start datum• Fully variable speed, 0.00001 to 9.99999 mm/minute• Accepts specimens up to 100 mm squareThe ELE Direct Shear Apparatus accepts specimens 60 mm, 100 mm square or 2.5 inches in diameter. The use of a microprocessor controlled drive system and keyboard entry gives the apparatus a wide range of features that include pause and speed reset during test, RS 232C interface, operator programming of speed and control functions, self test diagnostics and many other features. A return to start datum provides a positive means of reversing the shearbox when either preparing for a new test or continuing with residual testing procedures.Safety forward/reverse travel limit switches are fitted as standard and monitored through the electronics system control.The electronics are housed in a modern moulded shroud, which includes a large LCD display and keyboard entry. The apparatus is enclosed in a robustly constructed case, has been designed for floor mounting and is supplied complete with carriage, loading hanger and 10:1 lever loading device
26-2114/01
• Microprocessor control• Large on-board LCD screen display• Direct entry via touch sensitive keyboard• Rapid approach and return to start datum• Fully variable speed, 0.00001 to 9.99999 mm/minute• Accepts specimens up to 100 mm squareThe ELE Direct Shear Apparatus accepts specimens 60 mm, 100 mm square or 2.5 inches in diameter. The use of a microprocessor controlled drive system and keyboard entry gives the apparatus a wide range of features that include pause and speed reset during test, RS 232C interface, operator programming of speed and control functions, self test diagnostics and many other features. A return to start datum provides a positive means of reversing the shearbox when either preparing for a new test or continuing with residual testing procedures.Safety forward/reverse travel limit switches are fitted as standard and monitored through the electronics system control.The electronics are housed in a modern moulded shroud, which includes a large LCD display and keyboard entry. The apparatus is enclosed in a robustly constructed case, has been designed for floor mounting and is supplied complete with carriage, loading hanger and 10:1 lever loading device.
