88-4100
Category:
Soils, Asphalt, Laboratory Equipment
Sub Category:
Compaction and CBR, CBR, Soil Strength (Triaxial), Triaxial Load Frames, Direct Shear and Vane Tests, Design and Testing of Bituminous Mixtures, Hveem Stability, General, Dial Gauges
Product Group:
Digital Tritest 50 Load Frame, Hveem Stabilometer, Mechanical Dial Indicators, CBR-Test 50 Machine, CBR Loading Press, Hand-Operated, Direct/Residual Shear Apparatus, Tripod Attachment
1.0” x 0.001” divisions.

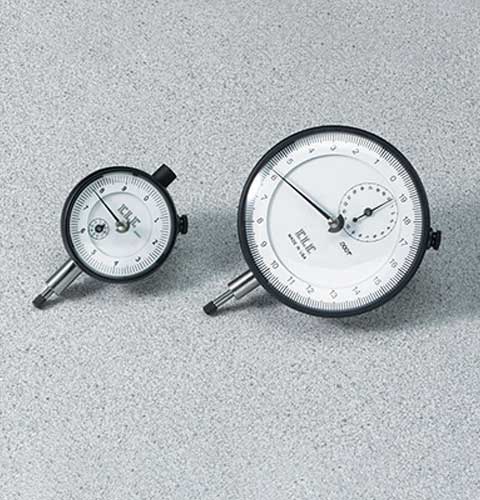

| Description | Mechanical Dial Indicator - 1.0" Range |
| Dial Indicator | 1.0" Range |
| Range | 1.0" |
| Divisions | 0.001" |
| Movement | Clockwise |
| Face Diameter | 2-1/4" |
| Contact Point | Immediate response, up or down; tip movement magnified to indicator hand with minimal friction; 3/16” (5 mm) radius x 1/4” (6 mm) l. |
| Dials | With continuous graduations and revolution counters. |
| Measure Movement | Measure movement towards dial case; pointer at zero with stem extended. |
| Weight | Net 12 oz. (34 0 g). |
