S-Type Load Cell 500 lb Capacity

« return

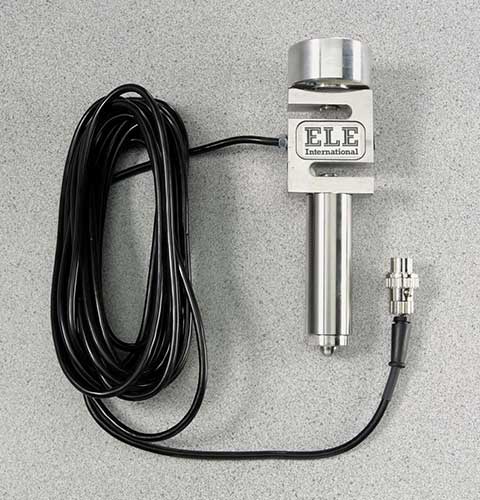

S-Type Load Cell 500 lb Capacity

27-1581

Category:

Soils

Sub Category:

Electronic Instrumentation, Data Acquisition

Product Group:

S-Type Load Cell

(2.2 kN) capacity. Net wt. 1 lb. (0.45 kg).
Mounting Hardware Includes all necessary hardware for mounting to the
Tritest 50 and Versa-Loader load frames.
Description S-Type Load Cell 500 lb Capacity

Specifications

Excitation10vDC.
Output3.0 mV/V minimum.
Non-Linearity0.03% full scale output.
Hysterisis0.02% full scale output.
Bridge Resistance350 ohms nominal.
Overload Capacity150%.
Mounting HardwareIncludes all necessary hardware for mounting to the Tritest 50 and Versa-Loader load frames.

Submersible Load Transducer Assembly 5kN Capacity In Compression.

27-1573

dings•Unaffected by cell confining pressures•Easily installed in triaxial cell•Supplied complete with calibration certificate and 5-pin DIN type connector for use with GDUSubmersible Load Transducers are used to measure accurately the axial loads applied to triaxial test specimens. Consisting of a load cell and piston assembly these units replace the standard triaxial cell loading piston. A major advantage is that these transducers measure loads directly on top of the specimen. All transducers are supplied complete with a 5-pin DIN type connector and calibration certificate.
more

S-Type Load Cell 10,000 lb Capacity

27-1587

(44.4 kN) capacity. Net wt. 3 lbs. (1.3 kg).
more

S-Type Load Cell 2,000 lb Capacity

27-1583

(8.9 kN) capacity. Net wt. 1 lb. (0.45 kg).
more
