27-1583
Category:
Soils
Sub Category:
Electronic Instrumentation, Data Acquisition
Product Group:

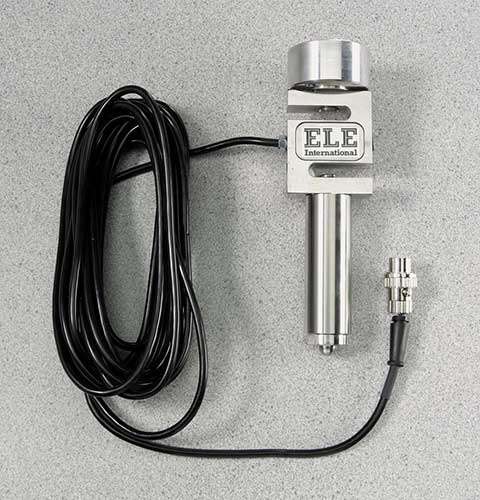

S-Type Load Cell
(8.9 kN) capacity. Net wt. 1 lb. (0.45 kg).
| Mounting Hardware | Includes all necessary hardware for mounting to the Tritest 50 and Versa-Loader load frames. |
| Description | S-Type Load Cell 2,000 lb Capacity |
| Excitation | 10vDC. |
| Output | 3.0 mV/V minimum. |
| Non-Linearity | 0.03% full scale output. |
| Hysterisis | 0.02% full scale output. |
| Bridge Resistance | 350 ohms nominal. |
| Overload Capacity | 150%. |
| Mounting Hardware | Includes all necessary hardware for mounting to the Tritest 50 and Versa-Loader load frames. |
27-1575
dings•Unaffected by cell confining pressures•Easily installed in triaxial cell•Supplied complete with calibration certificate and 5-pin DIN type connector for use with GDUSubmersible Load Transducers are used to measure accurately the axial loads applied to triaxial test specimens. Consisting of a load cell and piston assembly these units replace the standard triaxial cell loading piston. A major advantage is that these transducers measure loads directly on top of the specimen. All transducers are supplied complete with a 5-pin DIN type connector and calibration certificate.
27-1573
dings•Unaffected by cell confining pressures•Easily installed in triaxial cell•Supplied complete with calibration certificate and 5-pin DIN type connector for use with GDUSubmersible Load Transducers are used to measure accurately the axial loads applied to triaxial test specimens. Consisting of a load cell and piston assembly these units replace the standard triaxial cell loading piston. A major advantage is that these transducers measure loads directly on top of the specimen. All transducers are supplied complete with a 5-pin DIN type connector and calibration certificate.
