34-3272
Category:
Concrete
Sub Category:
Fresh and Hardened Concrete Testing, Air Entrainment
Product Group:
Volumetair
| Diameter, ” | 7.25 |
| ASTM C173 | Yes |
| Description | Volumetair |
| Sight tube | 0 to 9% |
| Base volume | 134 cu. Ft (2,200 ml) |
| Diameter | 7.25" (184 mm) at middle |
| Height | 24.25" (616 mm) |
| Weight | Net 6 lbs (2.7 kg) |
34-3265
• 7 litre capacity• Shock-proof pressure gauge mounting• Lightweight aluminum construction• Heavy-duty plastic carrying case for easy transport to siteThe proper control of entrained air in concrete is recognized as one of the most important functions in modern concrete manufacture. For the concrete engineer, the ELE Precision Air Entrainment Meter offers an instrument for the testing and designing of concrete mixes.The instrument is designed so that the operating parts form an integral unit. The container is rigid, thus providing an accurate device for the performance of unit weight testing. For convenience, the tare weight in grams is stamped on the bottom. When used with the nomograph supplied within the operating instructions, the air meter provides quick and easy particle density and percent of free moisture in aggregate determinations. Complies with EN 12350-7 (BS 1881-106), ASTM C231/C231M, AASHTO T152.
34-3267

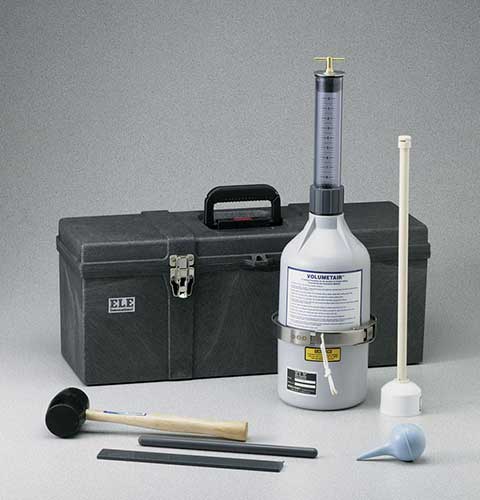

Includes straight edge, syringe, calibration vessel, tamping rod and carrying case.
