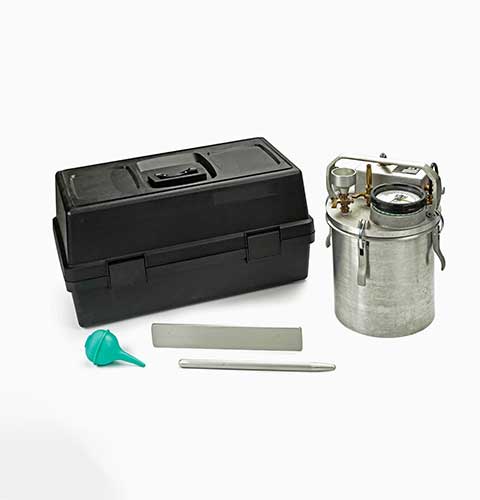

Air Entrainment Meter B Type Complete with Carrying Case. Supplied with Aluminium Tamping Bar.

« return

Air Entrainment Meter B Type Complete with Carrying Case. Supplied with Aluminium Tamping Bar.



Fresh and Hardened Concrete Testing, Concrete

Sub Category:

Air Entrainment, Fresh and Hardened Concrete Testing, Air Entrainment

Product Group:

Precision Air Entrainment Meter, Precision Air Entrainment Meter

• 7 litre capacity
• Shock-proof pressure gauge mounting
• Lightweight aluminum construction

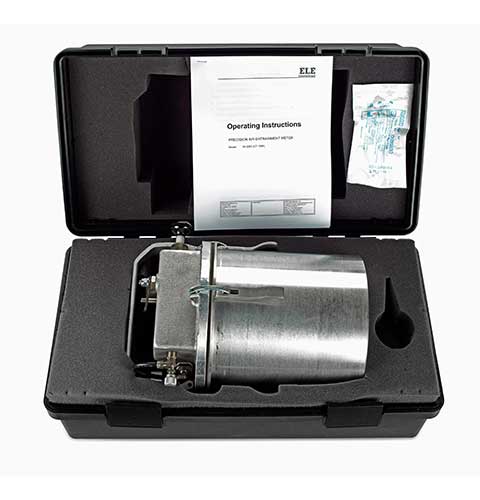

• Heavy-duty plastic carrying case for easy transport to site

The proper control of entrained air in concrete is recognized as one of the most important functions in modern concrete manufacture. For the concrete engineer, the ELE Precision Air Entrainment Meter offers an instrument for the testing and designing of concrete mixes.

The instrument is designed so that the operating parts form an integral unit. The container is rigid, thus providing an accurate device for the performance of unit weight testing. For convenience, the tare weight in grams is stamped on the bottom. When used with the nomograph supplied within the operating instructions, the air meter provides quick and easy particle density and percent of free moisture in aggregate determinations.

Complies with EN 12350-7 (BS 1881-106), ASTM C231/C231M, AASHTO T152.

Description Air Entrainment Meter - B Type
External Dimensions dia x height, ” 9.75 x 13.25
ASTM C231 Yes



Capacity  7 Litres
Readings Up to 22% entrained air
Accuracy 0.25% full scale
Aggregate Size 2" (50.8 mm) maximum
Container With tare weight stamped on bottom; 2-piece clamping device for positive seal.
Water 4 oz required
Initial Pressure Approx. 10 strokes needed
Pressure Gauge In shock-proof mounting
Tamping Rod Aluminium; 24" (610 mm) long
Dimensions 9-3/4" diam. X 13-1/4" h. (248 x 337 mm)
Weight Net 15 lbs (8 kg)


Press-Ur-Meter Type A


Includes straight edge, syringe, calibration vessel, tamping rod and carrying case.
