29-3739
Category:
Soils
Sub Category:
Soil Index Properties, Classification
Product Group:
Proving Ring Penetrometer
250 psi capacity
| Extension Rod Dimensions diam x l, ” | 3/4 x 36 |

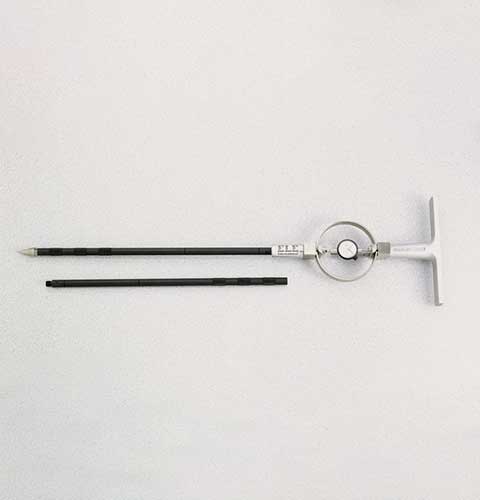

| Description | Proving Ring Penetrometer |
| Proving Ring | 250 lb. (1.1 kN) capacity. |
| Dial Indicator | Brake type. |
| Shaft | 3/4” (19 mm) diam. x 18” l. (45 7 mm); graduated at 6” (152 mm) intervals. |
| Extension Rod | 3/4” (19 mm) diam. x 36” l. (914 mm); graduated at 6” (152 mm) intervals. |
| Cone | 30 degree; 1 sq. in.; replaceable. |
| Handle | Cast aluminum. |
| Weight | Net 12 lbs. (5.4 kg). |
29-3741

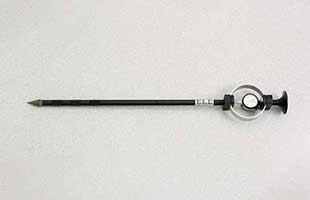

Reads directly in pounds per square inch (psi). Manufactured in accordance with Corps of Engineers specifications. The C.O.E. Cone Penetrometer is the principal instrument used in evaluating soil trafficability. It consists of a 30 degree cone with a 1/2 sq. in. base area, proving ring, dial indicator, extension rod and a handle.
29-3729

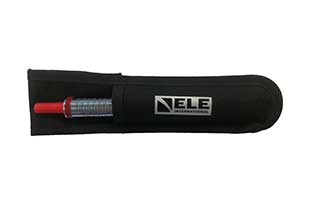

• Direct-reading scale in tons/sq. ft. and kg/sq. cm.• Ground and polished stainless steel loading piston.• Calibrated spring and penetrometer body plated for rust resistance and long life.• Convenient belt-loop style carrying case.• Optional Adapter Foot for testing very soft materials.The Pocket Penetrometer was originally developed for use by field personnel in checking visual classification of soils. Data was compiled on several thousand unconfined compressive strength tests of silty clays and clayey soils against the penetrometer readings to develop the scale.
