C.O.E Cone Penetrometer

29-3741

Category:

Soils

Sub Category:

Soil Index Properties, Classification

Product Group:

C.O.E Cone Penetrometer

  • Reads directly in pounds per square inch (psi).
  • Manufactured in accordance with Corps of Engineers specifications.

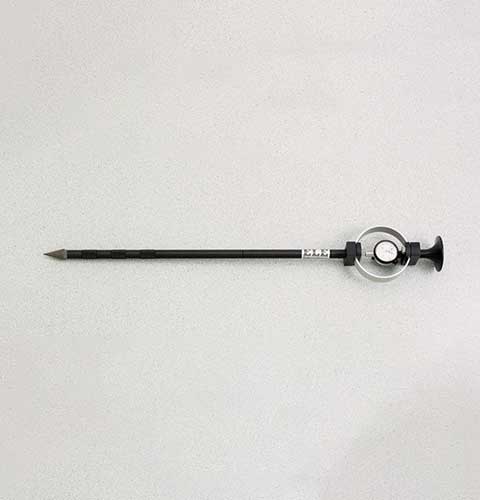

The C.O.E. Cone Penetrometer is the principal instrument used in evaluating soil trafficability. It consists of a 30 degree cone with a 1/2 sq. in. base area, proving ring, dial indicator, extension rod and a handle.

300 psi capacity

Shaft Dimensions, diam x l, ” 5/8 x 19
Description C.O.E Cone Penetrometer



Specifications

Proving Ring 150 lb. capacity; dial indicator calibrated direct in psi,
0 to 300 psi by 5 psi subdivisions.
Shaft 5/8” (15 .8 mm) diam. x 19” l. (483 mm).
Cone 30 degree; 1/2 sq. in.; replaceable.
Weight Net 5 lbs. (2.4 kg).



Pocket Penetrometer.

29-3729

• Direct-reading scale in tons/sq. ft. and kg/sq. cm.• Ground and polished stainless steel loading piston.• Calibrated spring and penetrometer body plated for rust resistance and long life.• Convenient belt-loop style carrying case.• Optional Adapter Foot for testing very soft materials.The Pocket Penetrometer was originally developed for use by field personnel in checking visual classification of soils. Data was compiled on several thousand unconfined compressive strength tests of silty clays and clayey soils against the penetrometer readings to develop the scale.
