39-1300/06
Category:
Mixing, Moulding, Curing and Strength
Sub Category:
Curing
Product Group:
Humidity Cabinet BS EN

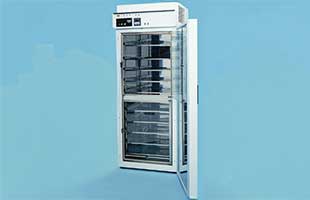

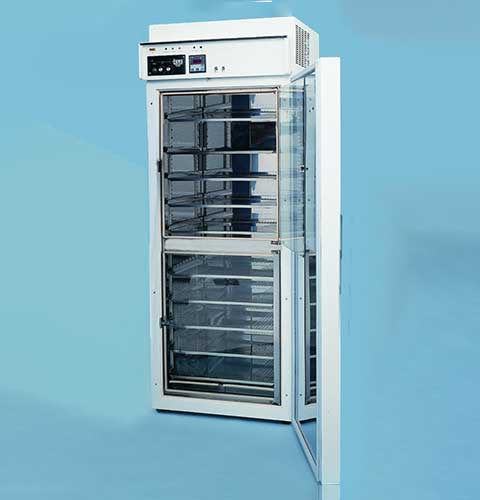

This cabinet has a stainless steel interior and it is fitted with adjustable shelves. It also has sealed chambers making it suitable for humidity’s up to 98%. This can have an outer door heater to demist the inner toughened glass viewing door. Two 12 mm access ports are provided as standard.
Monitoring and control of both heating and cooling functions are performed with great accuracy, and achieves typical temperature stability of ±0.5°C. The LED digital display allows the temperature performance to be easily verified. A digitally set over temperature safety cut-out is fitted to all models.
For 220 – 240 V AC, 60 Hz, 1 ph.
**Not available for sale in the USA**
10 Reinforced Shelves and Digital Data Recorder
| Description | Humidity Cabinet |
| Capacity, litres | 320 |
| Voltage Supply | 220 - 240 V AC, 60 Hz, 1 ph |
| Power Supply | 220-240 V AC, 60 Hz, 1 ph |
| Capacity | 320 litres |
| Dimensions External, Internal | 660 x 635 x 1745 mm, 490 x 510 x 1275 mm |
| Temperature Range | +5.0°C to +60°C |
| Fluctuation (better than) | ± 0.2ºC |
| Variation (better than) | ± 0.5ºC |
| Temperature, Humidity |
0 – 50ºC, 0 – 100% RH |
| Rated power | 850 Watt |
| Number of shelves | 10 fully adjustable in 20 mm increments |
| Weight | 200 kg |
39-1300/01
This cabinet has a stainless steel interior and it is fitted with adjustable shelves. It also has sealed chambers making it suitable for humidity’s up to 98%. This can have an outer door heater to demist the inner toughened glass viewing door. Two 12 mm access ports are provided as standard. Monitoring and control of both heating and cooling functions are performed with great accuracy, and achieves typical temperature stability of ±0.5°C. The LED digital display allows the temperature performance to be easily verified. A digitally set over temperature safety cut-out is fitted to all models. For 220 – 240 V AC, 50 Hz, 1 ph.
39-1600/01
Micro-processer controller for temperature and humidity for precise and reliable control Stainless Steel interior with adjustable shelves CFC-free polyurethane insulation to provide efficient thermal stability 12mm access port Prior to testing, EN 196 requires prisms to be cured for a period of at least 24 hours at 20 ±1ºC, 90 % RH minimum. The prisms are then de-moulded and stored under water for the required curing time, usually 48 hours, 72 hours, 7 and 28 days. The Humidity Cabinet is built to a high specification and is designed for the early curing of mortar prisms prior to storing under water. Relative humidity up to 98%. Please note 39-1300/24 Digital Recorder is optional, but must be ordered with the cabinet so they may be calibrated together.
39-1600/06
Micro-processer controller for temperature and humidity for precise and reliable control Stainless Steel interior with adjustable shelves CFC-free polyurethane insulation to provide efficient thermal stability 12mm access port Prior to testing, EN 196 requires prisms to be cured for a period of at least 24 hours at 20 ±1ºC, 90 % RH minimum. The prisms are then de-moulded and stored under water for the required curing time, usually 48 hours, 72 hours, 7 and 28 days. The Humidity Cabinet is built to a high specification and is designed for the early curing of mortar prisms prior to storing under water. Relative humidity up to 98%. Please note 39-1300/24 Digital Recorder is optional, but must be ordered with the cabinet so they may be calibrated together.
