Shear Box Assembly 2.5 Inch Diameter

« return

Shear Box Assembly 2.5 Inch Diameter



Direct Shear and Vane Tests, Soils

Sub Category:

Direct Shear and Vane Tests

Product Group:

Shear Box Assemblies, Shear Box Assemblies

•Manufactured from corrosion resistant materials
•Sample size 2.5 inch dia x 1 inch height meeting ASTM D3080
•Incorporates PTFE faced box separation screws to reduce friction

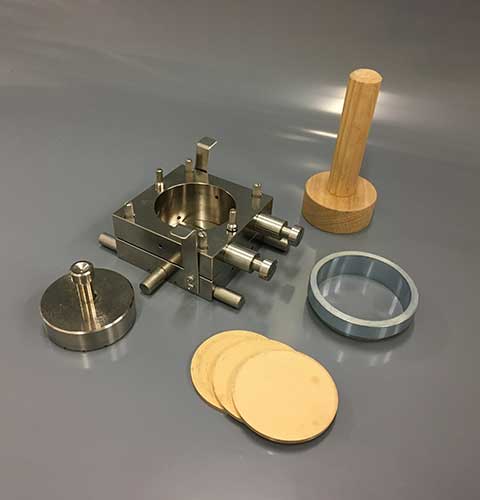

•Supplied complete with upper and lower porous plates and loading pad
•Suitable for quick undrained or drained/residual tests.

All shearbox assemblies are designed to fit the carriage of 26-2114 series Digital Direct/Residual Shear Apparatus. They are supplied complete with three porous plates, one retaining plate and a loading pad. The three sizes supplied comply with the relevant requirements of BS 1377 and ASTM D3080. All assemblies can be used for quick shear tests or drained/residual shear tests.

Optional accessories are available including specimen cutters and extrusion tools.

Description Shear box assembly
Specimen Size 2.5" diameter
Weight, kg 2.8
Thickness 1 Inch
Sample Size 2.5" dia.
ASTM D3080 Yes



Specimen area 1.5 inch diameter
Specimen thickness 1 inch
Weight kg 2.8
Relevant standard ASTM D3080
