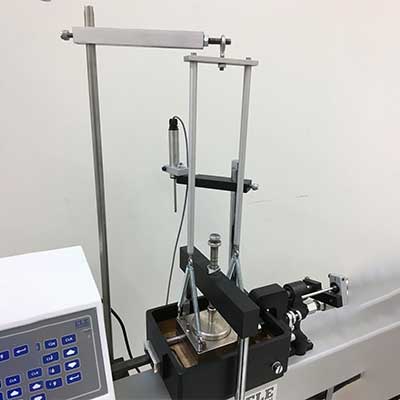

All ELE Shear Box Assemblies are designed to fit into the carriage of the EL26-2114 series Direct/Residual Shear Machines. They are supplied complete with two porous stones, one retaining stone and a loading pad. The four sizes offered comply with the relevant ASTM, AASHTO and BS standards.
All assemblies can be used for quick shear tests or drained/residual shear test applications.
•Manufactured from corrosion resistant materials

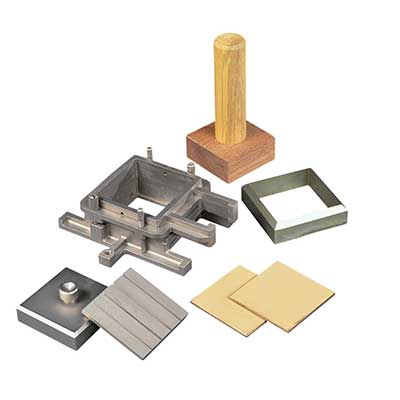

•Sample size 100 x 100mm x 25mm high meeting BS 1377
•Incorporates PTFE faced box separation screws to reduce friction

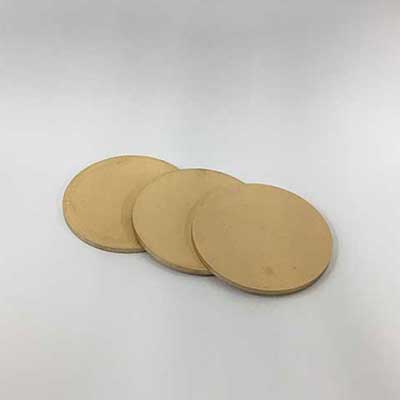

•Supplied complete with upper and lower porous plates and loading pad
•Suitable for quick undrained or drained/residual tests.
•Manufactured from corrosion resistant materials

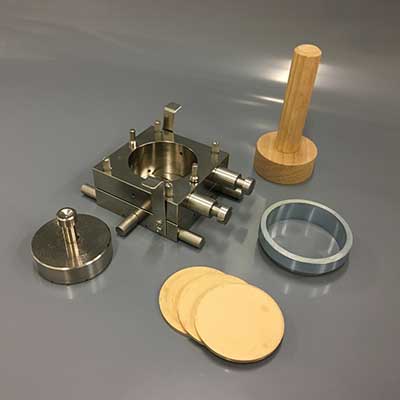

•Sample size 2.5 inch dia x 1 inch height meeting ASTM D3080
•Incorporates PTFE faced box separation screws to reduce friction
•Supplied complete with upper and lower porous plates and loading pad
•Suitable for quick undrained or drained/residual tests.
•Manufactured from corrosion resistant materials
•Sample size 60 x 60mm x 25mm high meeting BS 1377
•Incorporates PTFE faced box separation screws to reduce friction
•Supplied complete with upper and lower porous plates and loading pad
•Suitable for quick undrained or drained/residual tests
Includes all the parts necessary for compliance with the most recent requirements of ASTM D3080.
The kit minimises the frictional force between the top and bottom sections of the cutting box.
