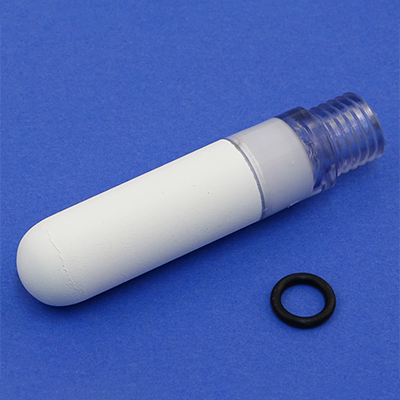

Tensiometers are used to measure soil tension, which is directly related to the amount of soil moisture available to plants. Capillarity is established between the waterfilled tensiometers and the soil water via a ceramic cup or tip. As soil water tension increases, water is drawn by suction from the tensiometer and the negative pressure created, which is representative of soil tension, may be read from a vacuum gauge.

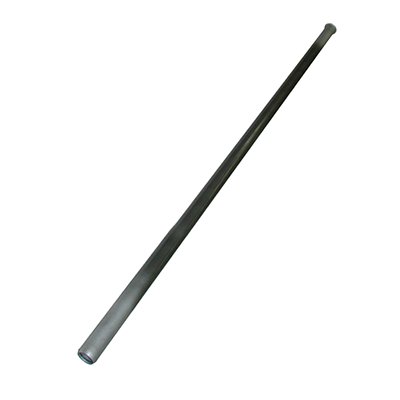

- To provide clearance hole and maintain hole diameter for tensiometers.
- For use with tensiometer series
info »

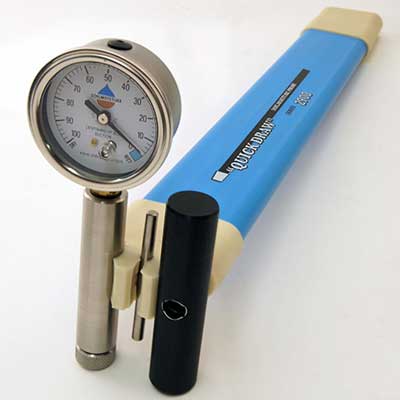

The world’s only portable, fast reading tensiometer. Accurately measures soil water tension. Supplied with coring tool and carrying case. 2 sizes available. The quickdraw soil moisture probe is an accurate, portable, inexpensive means for measuring the moisture available in the soil for plant uptake. The quickdraw probe is ready for immediate use and requires no adjustment or calibration. No batteries are required and its ease of maintenance means that these tensiometers give years of continuous, trouble free service. Used extensively and accepted enthusiastically by farmers, growers, groundsmen and agronomists, world-wide. The coring tool is first used to core an access hole to the desired depth of measurement. The tensiometer is then inserted into the access hole and the ceramic sensing tip is placed in contact with the soil. The Null knob can be used to reach equilibrium and provide a measurement more rapidly.
info »
The world’s only portable, fast reading tensiometer. Accurately measures soil water tension. Supplied with coring tool and carrying case. 2 sizes available. The quickdraw soil moisture probe is an accurate, portable, inexpensive means for measuring the moisture available in the soil for plant uptake. The quickdraw probe is ready for immediate use and requires no adjustment or calibration. No batteries are required and its ease of maintenance means that these tensiometers give years of continuous, trouble free service. Used extensively and accepted enthusiastically by farmers, growers, groundsmen and agronomists, world-wide. The coring tool is first used to core an access hole to the desired depth of measurement. The tensiometer is then inserted into the access hole and the ceramic sensing tip is placed in contact with the soil. The Null knob can be used to reach equilibrium and provide a measurement more rapidly.
info »

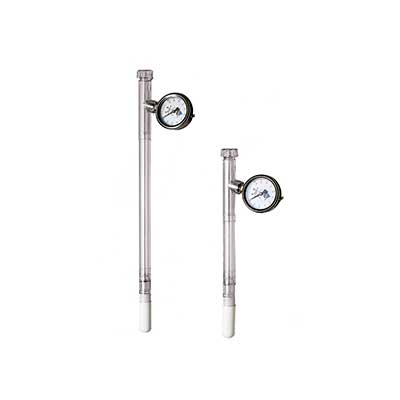

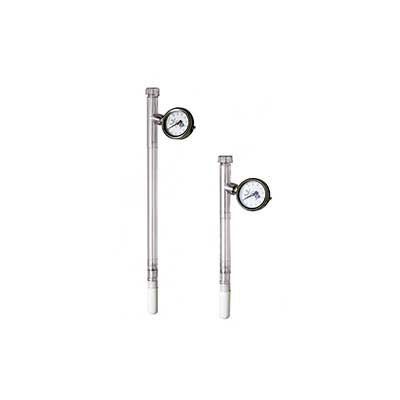

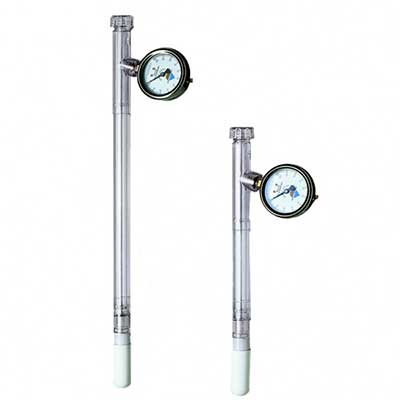

Durable weather and soil resistant tensiometer.
Designed for permanent installation.
Rapid response.

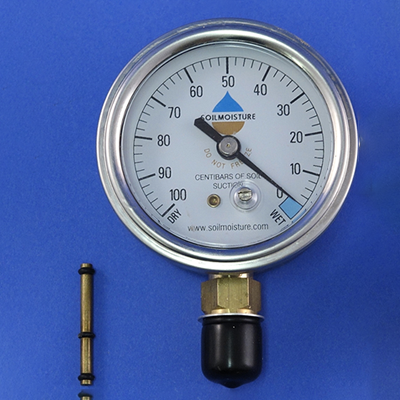

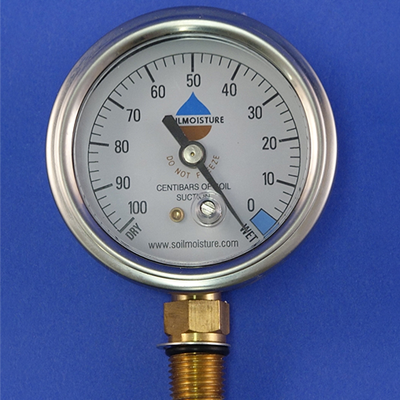

Accurate yet inexpensive, this tensiometer is ideal for long term deployment in both field and greenhouse environments. The tensiometer is easy to install via the use of the custom insertion tool (514-030), and maintain, with a full range of spares available. Rapid response is ensured by the sensitive 0-100 centibar dial gauge, having a re-calibration facility. For convenience, a range of lengths are available for monitoring at variable depths.
Note: For operating these tensiometers, a service kit (514-034) is required.
The insertion tool (514-030) is used to provide a clearance hole and also to maintain existing hole diameter for the tensiometer.
info »
Durable weather and soil resistant tensiometer.
Designed for permanent installation.
Rapid response.
Accurate yet inexpensive, this tensiometer is ideal for long term deployment in both field and greenhouse environments. The tensiometer is easy to install via the use of the custom insertion tool (514-030), and maintain, with a full range of spares available. Rapid response is ensured by the sensitive 0-100 centibar dial gauge, having a re-calibration facility. For convenience, a range of lengths are available for monitoring at variable depths.
Note: For operating these tensiometers, a service kit (514-034) is required.
The insertion tool (514-030) is used to provide a clearance hole and also to maintain existing hole diameter for the tensiometer.
info »
Durable weather and soil resistant tensiometer.
Designed for permanent installation.
Rapid response.
Accurate yet inexpensive, this tensiometer is ideal for long term deployment in both field and greenhouse environments. The tensiometer is easy to install via the use of the custom insertion tool (514-030), and maintain, with a full range of spares available. Rapid response is ensured by the sensitive 0-100 centibar dial gauge, having a re-calibration facility. For convenience, a range of lengths are available for monitoring at variable depths.
Note: For operating these tensiometers, a service kit (514-034) is required.
The insertion tool (514-030) is used to provide a clearance hole and also to maintain existing hole diameter for the tensiometer.
info »
Durable weather and soil resistant tensiometer.
Designed for permanent installation.
Rapid response.
Accurate yet inexpensive, this tensiometer is ideal for long term deployment in both field and greenhouse environments. The tensiometer is easy to install via the use of the custom insertion tool (514-030), and maintain, with a full range of spares available. Rapid response is ensured by the sensitive 0-100 centibar dial gauge, having a re-calibration facility. For convenience, a range of lengths are available for monitoring at variable depths.
Note: For operating these tensiometers, a service kit (514-034) is required.
The insertion tool (514-030) is used to provide a clearance hole and also to maintain existing hole diameter for the tensiometer.
info »

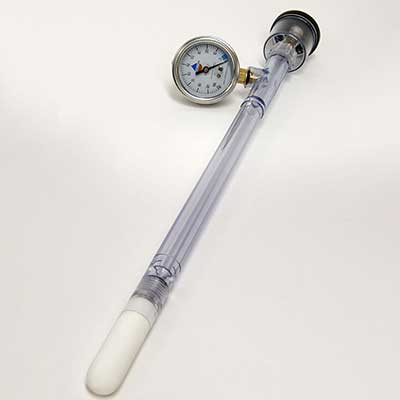

The most advanced and sensitive instrument available for the field measurement of soil moisture. The Jet-fill range includes patented features for superior accuracy and even faster response time whilst retaining the ease of use, maintenance and durability of its counterparts.
At the push of a button, the Jet-fill action releases water into the tensiometer body with no disturbance of the surrounding soil. The large volume, detachable water reservoir enables the unit to be left in place for several months. The recalibrator-style gauge permits zero-point adjustments for research applications.
info »
The most advanced and sensitive instrument available for the field measurement of soil moisture. The Jet-fill range includes patented features for superior accuracy and even faster response time whilst retaining the ease of use, maintenance and durability of its counterparts.
At the push of a button, the Jet-fill action releases water into the tensiometer body with no disturbance of the surrounding soil. The large volume, detachable water reservoir enables the unit to be left in place for several months. The recalibrator-style gauge permits zero-point adjustments for research applications.
info »
The most advanced and sensitive instrument available for the field measurement of soil moisture. The Jet-fill range includes patented features for superior accuracy and even faster response time whilst retaining the ease of use, maintenance and durability of its counterparts.
At the push of a button, the Jet-fill action releases water into the tensiometer body with no disturbance of the surrounding soil. The large volume, detachable water reservoir enables the unit to be left in place for several months. The recalibrator-style gauge permits zero-point adjustments for research applications.
info »
The most advanced and sensitive instrument available for the field measurement of soil moisture. The Jet-fill range includes patented features for superior accuracy and even faster response time whilst retaining the ease of use, maintenance and durability of its counterparts.
At the push of a button, the Jet-fill action releases water into the tensiometer body with no disturbance of the surrounding soil. The large volume, detachable water reservoir enables the unit to be left in place for several months. The recalibrator-style gauge permits zero-point adjustments for research applications.
info »
The most advanced and sensitive instrument available for the field measurement of soil moisture. The Jet-fill range includes patented features for superior accuracy and even faster response time whilst retaining the ease of use, maintenance and durability of its counterparts.
At the push of a button, the Jet-fill action releases water into the tensiometer body with no disturbance of the surrounding soil. The large volume, detachable water reservoir enables the unit to be left in place for several months. The recalibrator-style gauge permits zero-point adjustments for research applications.
info »
The most advanced and sensitive instrument available for the field measurement of soil moisture. The Jet-fill range includes patented features for superior accuracy and even faster response time whilst retaining the ease of use, maintenance and durability of its counterparts.
At the push of a button, the Jet-fill action releases water into the tensiometer body with no disturbance of the surrounding soil. The large volume, detachable water reservoir enables the unit to be left in place for several months. The recalibrator-style gauge permits zero-point adjustments for research applications.
info »

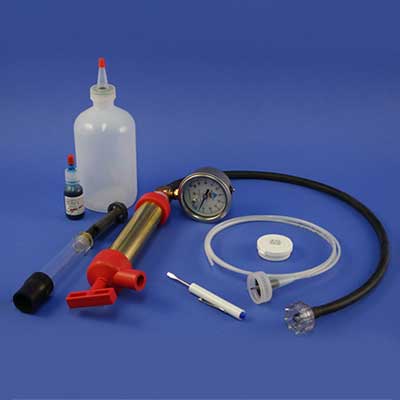

This kit is designed to service and maintain soil moisture tensiometers. Kit includes a vacuum hand pump, 455 ml natural colour plastic bottle, rubber washer, 3 mm outside diameter nylon tubing, spout/cap assembly, herbicide/algaecide additive and 12 monthly chart forms.
