450-060
Category:
Soils
Sub Category:
Soil Sampling
Product Group:
Soil water samplers

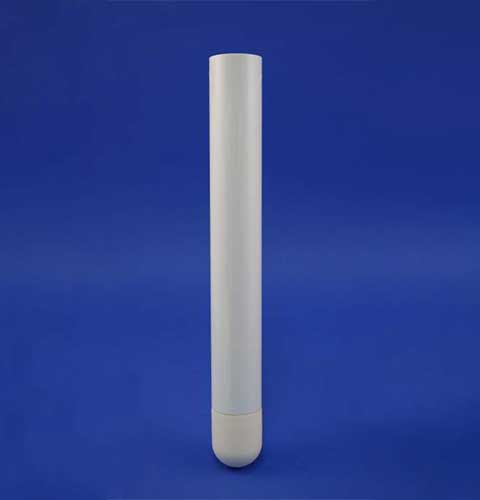

Samples water from saturated and unsaturated soils.
This range of soil water samplers can be installed either above or below the water table. They are designed to collect soil water, which can then be extracted from the device and taken to the laboratory for analysis. The sampler is installed into a hole made with a screw or bucket auger.
A negative pressure of up to 85 centibar is applied to the tube using a hand pump. Water enters the sampler through the porous ceramic cup at the end of the sampler. Water samples can be collected as required utilising the universal extraction kit (450-066). The rate of water accumulation depends on the soil type and moisture content.
Nitrate leaching from fertiliser applications can be monitored simply and effectively using these instruments.
Please note the 450-066 Universal extraction kit is required for the operation of soil water samplers.
Each soil water sampler has; plastic tube, ceramic cup, stopper assembly, neoprene tubing and pinch clamp.
| Description | Soil Water Sampler - 30 cm x 48 mm |
| Sampler length | 30 cm |
| Outer diameter | 48 cm |
| Weight | 0.26 kg |
| Dimensions | 305 x 127 x 127 mm |
450-066
ers 450-060, 450-062, 460-064 by withdrawing collected samples from near-surface or column soil water samplers. The Extraction Kit comes with a 50 ml syringe, 3.16 inches outside diameter tubing, 3.32 inches outside diameter nylon tubing and luer connectors, a vacuum dial gauge, capable of developing vacuums to 800 kPa. Rugged portable design for prolonged use in the field. Field repairable valve and pump pad pressures to +50 PSI, vacuums to 0.8 bars suction. All parts are Brass, Stainless Steel or rugged plastic for long service.
450-062
Easy installation. Requires no maintenance. Ideal for nitrate monitoring. 3 sampler sizes available. Samples water from saturated and unsaturated soils. This range of soil water samplers can be installed either above or below the water table. They are designed to collect soil water, which then can be extracted from the device and taken to the laboratory for analysis. The sampler is installed into a hole made with a screw or bucket auger. A negative pressure of up to 85 centibar is applied to the tube using a hand pump. Water enters the sampler through the porous ceramic cup at the end of the sampler. Water samples can be collected as required utilising the universal extraction kit (450-066). The rate of water accumulation depends on the soil type and moisture content. Nitrate leaching from fertiliser applications can be monitored simply and effectively using these instruments. Please note the 450-066 Universal extraction kit is required for the operation of soil water samplers. Each soil water sampler has; plastic tube, ceramic cup, stopper assembly, neoprene tubing and pinch clamp.
450-064
Easy installation. Requires no maintenance. Ideal for nitrate monitoring. 3 sampler sizes available. Samples water from saturated and unsaturated soils. This range of soil water samplers can be installed either above or below the water table. They are designed to collect soil water, which can then be extracted from the device and taken to the laboratory for analysis. The sampler is installed into a hole made with a screw or bucket auger. A negative pressure of up to 85 centibar is applied to the tube using a hand pump. Water enters the sampler through the porous ceramic cup at the end of the sampler. Water samples can be collected as required utilising the universal extraction kit (450-066). The rate of water accumulation depends on the soil type and moisture content. Nitrate leaching from fertiliser applications can be monitored simply and effectively using these instruments. Please note the 450-066 Universal extraction kit is required for the operation of soil water samplers. Each soil water sampler has; plastic tube, ceramic cup, stopper assembly, neoprene tubing and pinch clamp.
