45-9315/01
Category:
Specific Gravity, Asphalt
Sub Category:
Specific Gravity
Product Group:
Rice Test Vibrator, Rice Test Vibrator

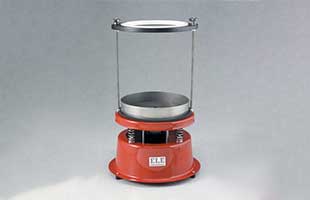

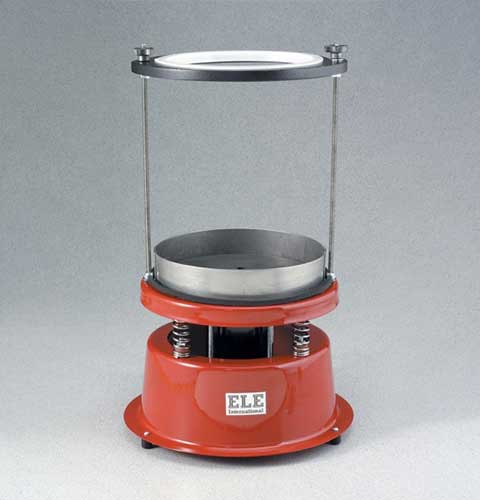

The Rice Test Vibrator is used with the 45-9300 6000 g Vacuum Pyknometer. Adjustable clamps hold the pyknometer securely to the base during vibration.
For 220 – 240 V AC, 50 Hz, 1ph.
| Description | Rice Test Vibrator 220 - 240 V AC 50 Hz |
| Dimensions, h x dia, ” | 19-1/2 x 12 |
| EN 12697-5 | Yes |
| ASTM D2041 | Yes |
| AASHTO T209 | Yes |
| Dimensions | 495 x 30 mm (height x base diameter) |
| Motor | 1/20 hp, 1.6 amp |
| Weight | 5.5 kg |
| Motor | 1/20 h.p.; 3000 vpm; 1.6 amp. |
| Dimensions | 19-1/2” (495 mm) h.; 12 ” (30 mm) base diameter. |
| Weight | Net 14.3 lbs. (6.5 kg). |
45-9315/02
The Rice Test Vibrator is used with the 45-9300 6000 g Vacuum Pyknometer. Adjustable clamps hold the pyknometer securely to the base during vibration. 110-120 V 60 Hz
