Ultrasonic Concrete Tester 110-240V 50/60Hz 1Ph



Non-Destructive Testing of Hardened Concrete, Concrete

Sub Category:

Pulse Velocity Measurement, Fresh and Hardened Concrete Testing, Non-Destructive Testing of Hardened Concrete

Product Group:

Ultrasonic Detection, Ultrasonic Concrete Test

35-2302/09  is the most versatile Concrete Tester to date. It has all the functions of the classic Concrete Tester, but offers additional benefits.
Designed with laboratory use in mind, its compact size, rugged construction and optimized power consumption make it equally suitable for on-site use.

Along with the traditional transit time and pulse velocity measurement, 35-2302/09 offers path length measurement, perpendicular crack depth measurement and surface velocity measurement.

Optimized pulse shaping gives greater transmission range at lower voltage levels. This coupled with automated combination of the transmitter voltage and the receiver gain ensures an optimum received signal level, ensuring accurate and stable measurements.

The waveform can be viewed either via an external oscilloscope connection or directly on a connected PC screen.

Full remote control capability completes the package.

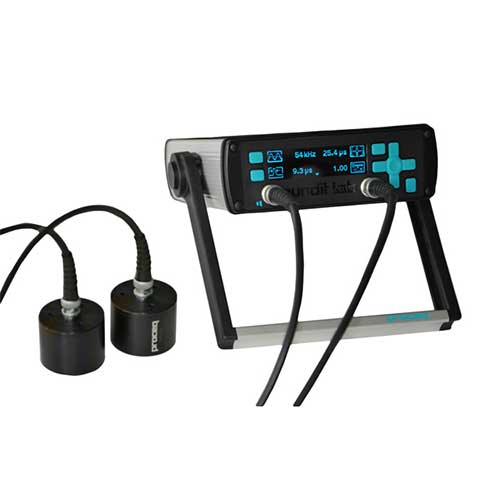

Complete with two 54 kHz transducers each with 3.6 metres of cable, coupling agent, carrying case and instruction manual.

Applications include pulse velocity determination, quality assessment and uniformity, modulus of elasticity measurement, curing status evaluation, crack depth estimation, assessment of fibre reinforced concrete.

Consists of display unit, 2 transducers (54 kHz), 2 BNC cables 1.5m, couplant, calibration rod, USB charger with USB-cable, 4x AA (LR6) batteries, data carrier with software, documentation and carrying case.

Complies to BS 1881-203, EN 12504-4, ASTM C597.

For 110 – 240 V AC, 50 – 60 Hz, 1 ph.

Description Pundit Lab Ultrasonic Concrete Tester
Dimensions, l x w x h, ” 12x18x6
Measuring range Up to 15 m depending on concrete quality
Bandwidth 20 to 500 kHz
Technology  Ultrasonic pulse velocity
Measuring resolution 0.1 us
Pulse voltage UPV 125 to 500 V
Receiver gain  1x, 10x, 100x, auto
Pulse shape  Square wave
Nominal transducer frequency 24-500 kHz
Number of channels 1
