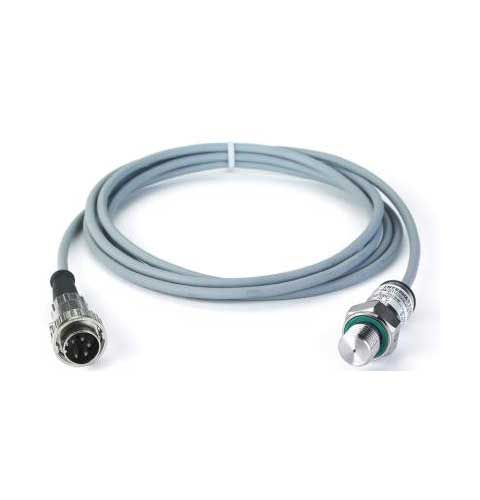

Pressure Transducer Assembly 1700Kpa Fitted with 5 Pin DIN Plug.



Data Logging, Software and Electronic Instrumentation, Soils

Sub Category:

Instrumentation for Triaxial testing, Permeability, Electronic Instrumentation, Data Acquisition

Product Group:

Pressure Measurement, Tri-Flex 2 One-Cell Permeability Test System, Pressure Transducer

Pressure Transducers are used to measure the cell, pore and back pressures during triaxial testing. Assemblies are supplied complete with a de-airing block, valve, 5-pin DIN plug connector and calibration certificate

Description Pressure Transducer
Thread 1 / 4



Construction Stainless Steel
Excitation 10 V DC
Output 143 mV full range
Thread ¼“ BSP
