Hand Operated Soil Lathe for 38mm Dia Specimens Up to 100mm Long.

« return

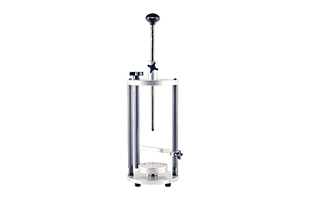

Hand Operated Soil Lathe for 38mm Dia Specimens Up to 100mm Long.

23-5800

Category:

In-situ Sampling and Preparation

Sub Category:

Extruders and Soil Lathes

Product Group:

Soil Lathes

For producing 38 mm diameter specimens. The lathe platen is adjustable in height and will accept specimens up to 100 mm in length.

  • Lightweight frame construction for both laboratory and field use.
  • Sturdy plated steel uprights serve as guides for wire saw during final trimming procedure.
  • Adjustable upper platen trimming for various sample heights.

Wire Saw and other trimming accessories not included; order separately.



Description Hand Operated Soil Lathe
38 mm Sample Yes
Maximum specimen length 100 mm
Specimen Diameter mm 38 mm
BS 1377-1 Yes

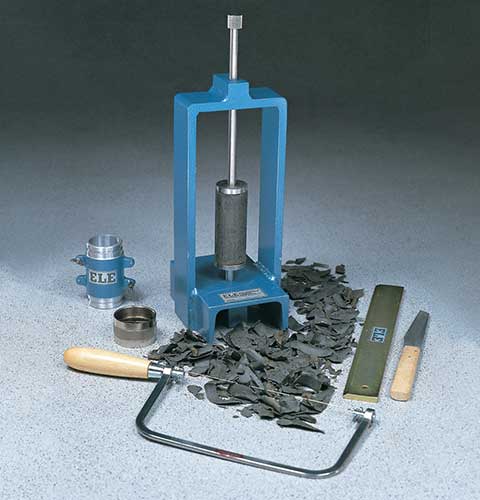

1.4" and 2.8" Hand Specimen Trimmer

23-5802

Specimen Trimmers are designed to simplify precision trimming of soil samples for triaxial, shear, unconfined compression, and other tests requiring standard cylindrical specimens. This trimming frame is supplied complete with vane type grips for both 1.4" (35 mm) and 2.8" (70 mm) diameter specimens, and a narrow wire saw.
