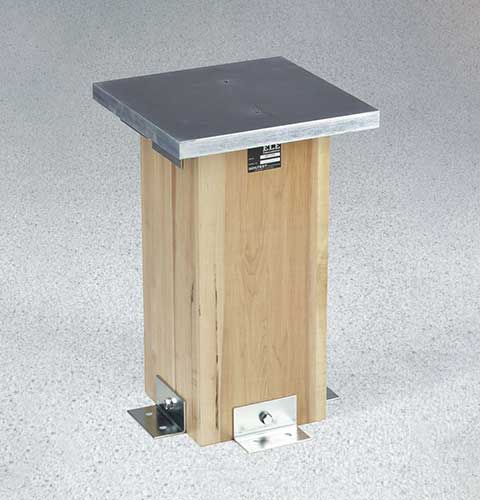

Compaction Pedestal

45-6416

Category:

Asphalt

Sub Category:

Design and Testing of Bituminous Mixtures, Marshall Stability and Flow

Product Group:

Compaction Pedestal

Installation 4 angle brackets for mounting to concrete slab.
ASTM D6926 Yes
AASHTO T245 Yes
Description Compaction Pedestal

Specifications

Top PlatePlated steel; 12 ” x 12 ” x 1” thick (305 x 305 x 25 .4 mm).
BaseLaminated hardwood.
Installation4 angle brackets for mounting to concrete slab.
Dimensions8” w. x 8” d. x 18” h. (203 x 203 x 457 mm).
WeightNet 74 lbs. (33.6 kg).

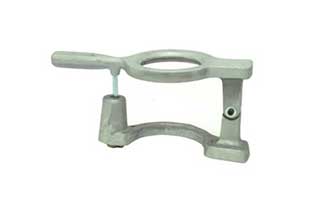

Compaction Mould Holder

45-6414

Made from heavy aluminum castings. The Mold Holder mounts to the Compaction Pedestal and centers the mold over the post.The Mold Holder keeps the mold, collar and base securely positioned during compaction.
