45-6480
Category:
Asphalt
Sub Category:
Design and Testing of Bituminous Mixtures, Marshall Stability and Flow
Product Group:

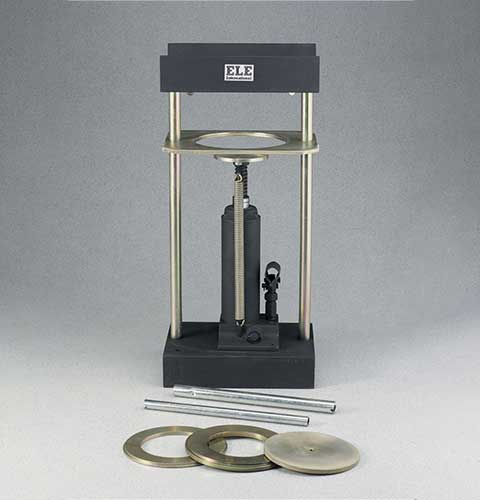

Asphalt Sample Ejector
| Construction | All metal; plated extrusion plates and piston discs; painted finish on housing and pump. |
| ASTM D6926 | Yes |
| AASHTO T245 | Yes |
| Description | Asphalt Sample Ejector |
| Capacity | 4” (101.6 mm) l. |
| Pushing Force | 6,000 lbf. (26.7 kN). |
| Jack | Hydraulic; hand-operated; 7” (178 mm) stroke; spring return. |
| Construction | All metal; plated extrusion plates and piston discs; painted finish on housing and pump. |
| Dimensions | 10-3/8” w. x 8” d. x 23-3/8” h. (264 x 203 x 594 mm). |
| Weight | Net 60 lbs. (27 kg). |
