37-4856/09
Category:
Concrete
Sub Category:
Compression Machines Accessories
Product Group:
ADR TOUCH Digital Readout Unit Accessories
• New touch screen user-friendly interface to reduce set-up and training time.
• Data storage for thousands of results.
• USB data transfer to PC and RS232C printer output.
• High accuracy and test repeatability.
• Select your language for screen prompts: English, Spanish, Portuguese or French.

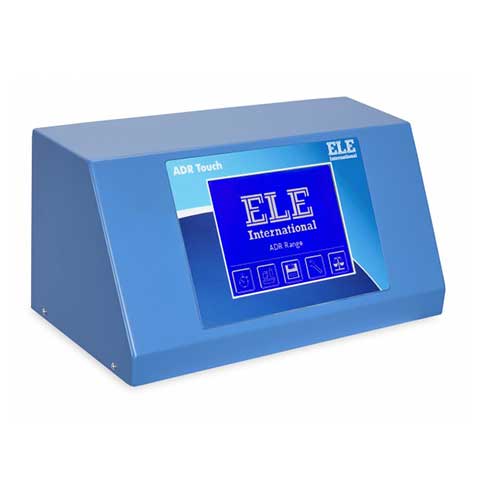

The ADR Advanced Digital Readout incorporates the latest in microprocessor technology. Its advanced facilities for data acquisition, calculation and presentation provide a very effective upgrade path for your existing compression testing machines.
Procedures are easily executed on the touch-button data entry keypad with results viewed on the large, backlit LCD display.
Accurate load pacing is assured by means of the pace deviation bar graph incorporated into the display. The stress is calculated automatically at specimen failure and then displayed in engineering units. Automatic storage for data for 500 tests is possible. Using the serial RS232C communication port, data can be sent to personal
computers or printers for hard copy printout of the tests.
110-220vAC, 50-60 Hz, 1ø.
This part is available from the US office
| Description | ADR Touch SOLO Digital Readout Unit |
| Transducer Excitation | 0.05…10V |
| ASTM C39 | Yes |
| ASTM C78 | Yes |
| ASTM C104 | Yes |
| ASTM C109 | Yes |
| ASTM C293 | Yes |
| AASHTO T22 | Yes |
| AASHTO T97 | Yes |
| Inputs | 1, via standard 5 pin DIN sockets. |
| Transducer Excitation | 0.05...10V @ 5 mA (max.). |
| Measurement Units | Lbf, kN or kgf (selectable). |
| Accuracy | Better than +/- 1% over the calibrated range. |
| Display | 5.7" (145 mm) high resolution QVGA touch-screen display, incorporating full key pad (QWERTY type) |
| Dimensions | 12.4” w. x 6.4” d. x 6.2” h. (316 x 162 x 158 mm). |
| Weight | Net 7.9 lbs. (3.6 kg). |
