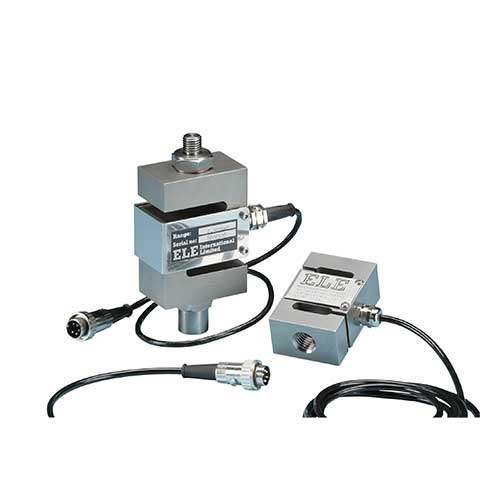

50kN S-type Load Cell



Compaction & CBR Test Equipment, Data Logging, Software and Electronic Instrumentation, Design and Testing of Bituminous Mixtures, Asphalt

Sub Category:

California Bearing Ratio, Instrumentation for CBR testing, Marshall Stability and Flow, Design and Testing of Bituminous Mixtures, Marshall Stability and Flow

Product Group:

Load Measurement, Electronic Instrumentation, Force measurement, Electronic Instrumentation

Maximum working capacity of 50 kN and excitation 10 V AC/DC with an output of 2.7 mV/V nominal. Aluminium alloy and Stainless Steel construction with IP65 environmental protection. Fitted with 5-pin DIN plug.

**Not available for sale in the USA**

Description S-type load cell - 50 kN
Value of CBR % ALL
Environmental Protection IP65
EN 12697-34 Yes
Force Capacity, kN 50

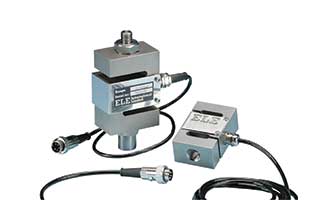

S-Type Load Cell 5 kN.for Triaxial Tests. Fitted with 5 Pin Din Plug.


•Repeatability better than ± 0.02% of rated output•Non-Linearity better than ± 0.03% of rated output•Supplied complete with 5-pin DIN type connector for connection to GDUIdeally suited for a wide range of applications, ELE S-type load cells provide high accuracy and minimum deformation. Various models are available, with the necessary adaptors, for use with ELE Triaxial Load Frames, Multiplex 50/Marshall Test 50/CBR Test 50 and Direct Shear machine.
