34-6132
Category:
Concrete
Sub Category:
Fresh and Hardened Concrete Testing, Capping of Cylinders
Product Group:
Concrete Capping Pads and Retainers

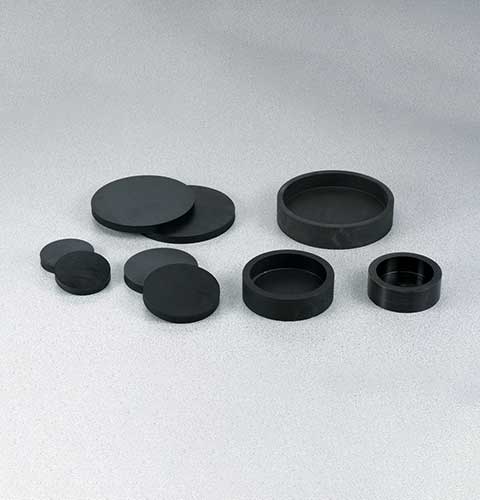

Set of 2.
Capping Pads with Retainers can only be used on compression testers with a vertical daylight opening of 14-1/2" (368 mm) between platens
| Diameter, ” | 5 |
| ASTM C1231 | Yes |
| AASHTO T22 | Yes |
| Description | 4″ Retaining Caps |
| Capping Pads. | Tough elastometric material; 60 durometer pads may be used on any strength concrete; however, the longevity is lowered when used on cylinders in excess of 5,500 psi. 70 durometer pads should be used only on cylinders where concrete is 4,500 psi or higher. |
| Retainers. | Machined, high alloy steel |
| Weights. | Pads: Net 8 oz. (227 g) ea. Retainers: 4" (102 mm) Net 4 lbs. (1.8 kg) ea. 6" (152 mm) Net 8 lbs. (3.6 kg) ea. |
