39-1150/06
Category:
Mixing, Moulding, Curing and Strength
Sub Category:
Moulding
Product Group:
Jolting Table

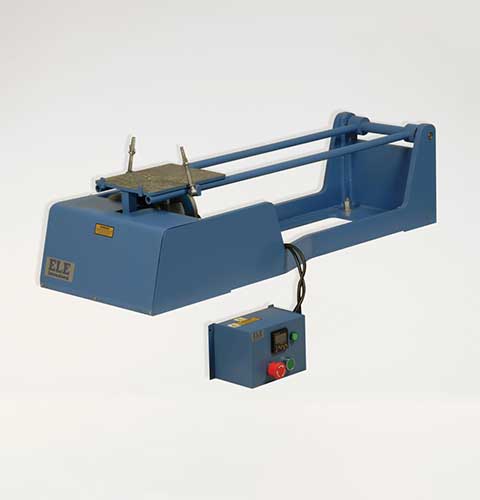

This machine consists of a mould table seated on a rotating cam driven at 60 revolutions per minute. The apparatus is supplied with a remote mains switch box, incorporating a push button start/stop control and automatic stop control at end of test.
Supplied without moulds.
**Not available for sale in the USA**
| Voltage Supply | 220 - 240 V AC 60 Hz |
| Description | Jolting Table |
| EN 196-1 | Yes |
| EN 413-2 | Yes |
| EN 459-2 | Yes |
| EN 1744-1 | Yes |
| EN 1015-10 | Yes |
| EN 1015-11 | Yes |
| EN 13454-2 | Yes |
| ISO 679 | Yes |
| BS 3892-1 | Yes |
| BS 4551-1 | Yes |
| Motor rating | 0.24 kW (1/3 hp) |
| Cam shaft RPM | 60 |
| Table lift | 15 +/- 0.3 mm |
|
Overall dimensions with swing bolts raised
|
(H x W x D) 340 x 400 x 1045 mm |
| Weight | 90 kg |
39-1100
s manufactured to a very high specification. Supplied with glass plate. Complies to EN 196-1, ISO 679, EN 413-2, EN 459-2, EN 13454-2.
39-1170
EN 196-1, EN 196-9, BS 1881, ASTM C778 & ISO 679 Physical state: solid SiO2: > 95 % Form: crystallized Form of grains: subangular - Color: white - Smell : odourless - pH: # 7 Specific temperature for changes in physical state: Fusion temperature: 1610° C, boiling temperature: 2230°C Decomposition temperature: none Flash Point: not applicable Mass volume: absolute: 2,63 g/m³ - apparent: 1,6 g/cm³ Solubility: insoluble in water, soluble in hydro-fluoric acid
39-1150/01
This machine consists of a mould table seated on a rotating cam driven at 60 revolutions per minute. The apparatus is supplied with a remote mains switch box, incorporating a push button start/stop control and automatic stop control at end of test. Supplied without moulds. Complies to EN 196-1, ISO 679, EN 413-2, EN 459-2, EN 13454-2.
34-6575/01

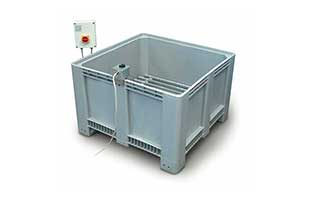

This large curing tank is supplied complete with a submersible pump, immersion heater/thermostat unit and separate control panel. The tank includes a lower rack as standard and is designed to maintain the temperature at 20°C ± 2°C, providing that the ambient temperature does not fall below 15°C or rise above 20°C. 3000 cycles per minute.
