39-0045/06
Category:
Mixing, Moulding, Curing and Strength
Sub Category:
Mixing
Product Group:

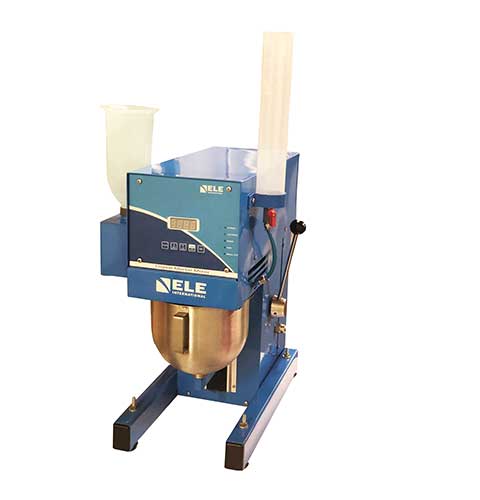

Automatic/Manual 5 Litre Nominal Capacity Mortar Mixer
• New Microprocessor control
• New mix program selector
• Complies with latest EN Standards update
• Choice of automatic mixing cycles
• Sand and water dispenser supplied as standard
This mixer is designed to mix mortars and cement pastes to the requirements of the IS:10890, EN 196-1 & EN 196-3. The mixing paddle has a planetary motion and is driven by a motor with a microprocessor based speed and program controller. The mixer can be operated either in an automatic or manual mode. When the mixer is used in the manual mode, the two mixing speeds can be changed by means of a rocker switch, without switching off the motor. In the automatic mode any one of the preset mixing programs may be selected.
**Not available for sale in the USA or Europe**
Complete with bowl and paddle, sand and Water dispensers. For 220V AC, 60 Hz, 1 ph.
| Description | Automatic/Manual 5 litre nominal capacity Mortar Mixer 60 Hz |
| Dimensions (l x w x h) | 530 x 390 x 715 mm |
| Speeds (rpm) Low, High | Paddle: 140 ± 5, 285 ± 10 Mixing Head: 62 ± 5, 125 ± 10 |
| Rated Power | 180 W |
| Bowl Capacity | 5 litres approx. |
| Weight | 54 kg |
| Standards | IS:10890, EN 196-1 & EN 196-3 |
