2101/01
Category:
Soils
Sub Category:
Direct Shear and Vane Tests
Product Group:

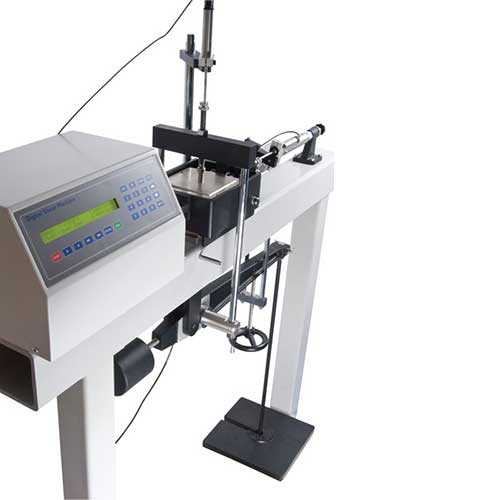

Direct/Residual Shear Test Set
Set includes:
1 Direct/Residual Shear Apparatus (26-2114/01).
1 2.5” diam. or 60 mm square Shear Box (26-2213 or 26-2181).
1 2.5” diam. or 60 mm square Specimen Cutter (26-2217 or 26-2185).
1 2.5" dia. or 60 mm square Specimen Extrusion Tool (26-2189 or 26-2221).
1 Vertical Dial Indicator (25-0445 or 25-0440).
1 Horizontal Dial Indicator (88-4100 or 88-4110).
1 Proving Ring 1000lb/4.5kN (78-0260).
1 Weight Set (25-0535).
220vAC, 50/60 Hz, 1ø. Metric.
60 mm sample
| Rated Power | 220vAC, 50/60 Hz, 1ø. |
| ASTM D3080 | Yes |
| AASHTO T236 | Yes |
| Description | Direct/Residual Shear Test Set 220vAC Metric |
2100/02
Set includes:1 Direct/Residual Shear Apparatus (26-2114/02).1 2.5” diam. or 60 mm square Shear Box (26-2213 or 26-2181).1 2.5” diam. or 60 mm square Specimen Cutter (26-2217 or 26-2185).1 2.5" dia. or 60 mm square Specimen Extrusion Tool (26-2189 or 26-2221).1 Vertical Dial Indicator (25-0445 or 25-0440).1 Horizontal Dial Indicator (88-4100 or 88-4110).1 Proving Ring 1000lb/4.5kN (78-0260).1 Weight Set (25-0535).
2101/02
Set includes:1 Direct/Residual Shear Apparatus (26-2114/02).1 2.5” diam. or 60 mm square Shear Box (26-2213 or 26-2181).1 2.5” diam. or 60 mm square Specimen Cutter (26-2217 or 26-2185).1 2.5" dia. or 60 mm square Specimen Extrusion Tool (26-2189 or 26-2221).1 Vertical Dial Indicator (25-0445 or 25-0440).1 Horizontal Dial Indicator (88-4100 or 88-4110).1 Proving Ring 1000lb/4.5kN (78-0260).1 Weight Set (25-0535).
2100/01
Set includes:1 Direct/Residual Shear Apparatus (26-2114/01).1 2.5” diam. or 60 mm square Shear Box (26-2213 or 26-2181).1 2.5” diam. or 60 mm square Specimen Cutter (26-2217 or 26-2185).1 2.5" dia. or 60 mm square Specimen Extrusion Tool (26-2189 or 26-2221).1 Vertical Dial Indicator (25-0445 or 25-0440).1 Horizontal Dial Indicator (88-4100 or 88-4110).1 Proving Ring 1000lb/4.5kN (78-0260).1 Weight Set (25-0535).
