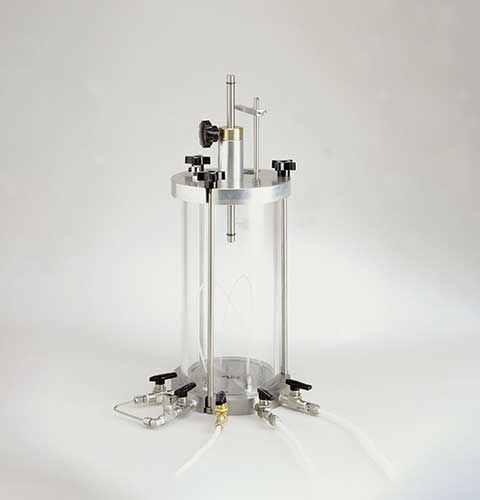

4" Triaxial Cell

25-4159

Category:

Soils

Sub Category:

Soil Strength (Triaxial), Triaxial Cells

Product Group:

Tri-Flex 2 Triaxial Cell

less accessories, order separately.

Description 4″ Triaxial Cell
Maximum Pressure, psi 150
ASTM D2850 Yes
ASTM D4767 Yes
ASTM D7181 Yes
AASHTO T296 Yes
AASHTO T297 Yes



Specifications

Maximum Working Pressure 15 0 psi (1,034 kPa).
Maximum Piston Load 10,100 lbf. (45 kN).
Head Assembly Anodized aluminum with quick-disconnect fill/vent port and dial gauge support assembly.
Head Assembly Sealed, with linear bearings and piston locking clamp.
Piston Assembly Stainless steel with four stainless steel no-volume change ball valves at inflow and outflow ports and one brass ball valve at the lateral port. All included tubing is of either stainless steel or Teflon construction.
Base Assembly Stainless steel with four stainless steel no-volume change ball valves at inflow and outflow ports
and one brass ball valve at the lateral port. All included tubing is of either stainless steel or Teflon construction.
Dimensions Approx. 8” diam. x 18” h. (203 x 45 8 mm) excluding
valves.
Weight Net 25 lbs. (11 .3 kg).



Pressure Interface Chamber

25-0695

n with Viton diaphragm and O-rings.  Supplied with all necessary valves and tubing.  The Pressure Interface Chamber (PIC) is used during permeability test application involving toxic permeants. The chambers provide a closed system for toxic liquids entering and exiting the test cell.  Weight: 5.5 kg (net 12 lbs)

100mm Triaxial Cell 1700Kpa with 5 Pressure/ Drainage Ports. Supplied with Two Valves.

25-4157

• Working pressure up to 1700 kPa• All round visibility• Sample sizes 38 to 100 mm diameter• Rapid assembly and dismantling• Accepts a range of interchangeable submersible load transducersThis range of precision made triaxial cells has been designed to meet the requirements of the modern soils laboratory. The cells have been treated to minimise corrosion. Particular attention has been paid to the quality of finish between the piston and the head. Final assembly includes the fitting of an O-ring seal and the use of special lubricant to reduce friction to a minimum and eliminate water leakage.The piston load capacity is designed to accept high horizontal forces which may be present during the final stages of a test. Each cell has five take-off positions drilled in the base for top drainage/back pressure, pore water pressure and bottom drainage. Two no-volume change valves and an anvil for strain gauge/transducer datum are supplied for fitting to the cell.A feature of these cells is that they all accept a single diameter piston. The internal height is such that a range of submersible load transducers can be fitted without any modification. Each cell will accept a range of base adaptors and various accessories for testing a wide range of specimens

50mm Triaxial Cell 1700Kpa with 5 Pressure/ Drainage Ports. Supplied with Two Valves.

25-4047

• Working pressure up to 1700 kPa• All round visibility• Sample sizes 38 to 100 mm diameter• Rapid assembly and dismantling• Accepts a range of interchangeable submersible load transducersThis range of precision made triaxial cells has been designed to meet the requirements of the modern soils laboratory. The cells have been treated to minimise corrosion. Particular attention has been paid to the quality of finish between the piston and the head. Final assembly includes the fitting of an O-ring seal and the use of special lubricant to reduce friction to a minimum and eliminate water leakage.The piston load capacity is designed to accept high horizontal forces which may be present during the final stages of a test. Each cell has five take-off positions drilled in the base for top drainage/back pressure, pore water pressure and bottom drainage. Two no-volume change valves and an anvil for strain gauge/transducer datum are supplied for fitting to the cell.A feature of these cells is that they all accept a single diameter piston. The internal height is such that a range of submersible load transducers can be fitted without any modification. Each cell will accept a range of base adaptors and various accessories for testing a wide range of specimens
