70-5000
Category:
Triaxial and Permeability
Sub Category:
N/A
Product Group:
Hydraulic Constant Pressure Systems

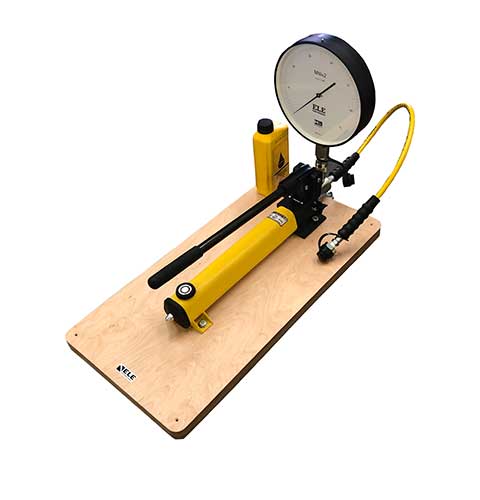

| Description | Hand Operated Pressure System with Pressure Gauge & Flexible Hose |
| Gauge MN/m² | 300 mm diameter scale marked 0-70 MN/m2 |
| Pump | Single piston |
| Maximum pressure | 70 mPa |
| Gauge | 250 mm diameter scale marked 0-70 MN/m² |
| Weight | 14.8 kg |
26-1926
use up to a pressure of 3500 kPa. Priced per metre.
70-2725
need to drain the confining fluid. Incorporates a rack and pinion mechanism mounted in a steel body, with adjustable back plate. Supplied with NX extruder adaptor set.
70-2630/01
• High stability load frame • Calibration accuracy satisfies BS EN ISO 7500-1, ASTM E4This machine incorporates the ADR Touch Microprocessor System. The ADR is designed to minimise data entry during normal testing procedures. These machines are specially adapted for use with ELE-Hoek Triaxial Cells and feature fixed upper and lower platens with locations to centralise the triaxial cell assembly for maximum stability. Power supply: 220 - 240 V AC 50-60 Hz 1 pH
70-1750
Permeability end caps used with ELE-Hoek Cells and constant pressure systems are a cost-effective solution suited to investigating the permeability of rock at high confining pressures in the laboratory. To collect and measure the water which permeates through the rock specimen, a suitable burette such as 25-4540 is recommended. Each permeability end cap incorporates a tubing connector which accepts standard 6 mm tubing, 26-1926, used to connect the cell to the pressure system and burette.
