ELE-Hoek Cell ADR Touch 2000 Compression Machine



Triaxial and Permeability

Sub Category:


Product Group:

Triaxial Testing

• High stability load frame

• Calibration accuracy satisfies BS EN ISO 7500-1, ASTM E4

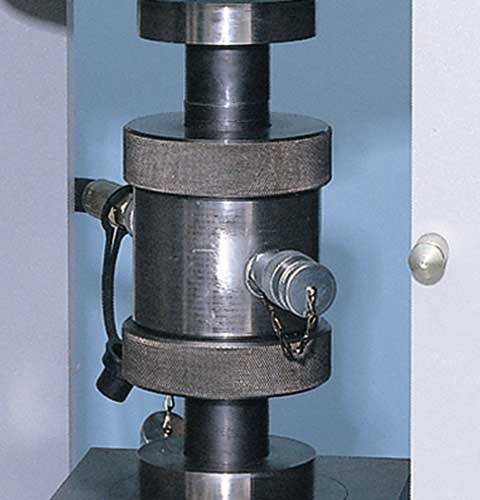

This machine incorporates the ADR Touch Microprocessor System. The ADR is designed to minimise data entry during normal testing procedures. These machines are specially adapted for use with ELE-Hoek Triaxial Cells and feature fixed upper and lower platens with locations to centralise the triaxial cell assembly for maximum stability.

Power supply: 220 - 240 V AC 50-60 Hz 1 pH

Supplied complete with digital readout, power pack, special upper and lower platens and gates. 220 - 240 V AC 50-60 Hz 1 pH

Description ELE-Hoek Cell ADR Touch 2000 Compression Machine
Voltage Supply 220 - 240 V AC 50-60 Hz 1 pH
BS EN ISO 7500-1 Yes



Dimensions (l x w x h) 520 x 700 x 1300 mm
Capacity 2000 kN
Ram travel 50 mm
Display ADR Digital Readout
Platen diameter 178 mm
Accuracy Better than ± 1% over upper 90% of working range
Rated power 1350 W
Weight  600 kg


Nylon Tubing 6 mm OD x 4 mm ID 3500 Kpa


use up to a pressure of 3500 kPa. Priced per metre.

Specimen Extruder Bench Mounting Frame for Extruding Specimens From Hoek Cells


need to drain the confining fluid. Incorporates a rack and pinion mechanism mounted in a steel body, with adjustable back plate. Supplied with NX extruder adaptor set.

Pair of Permeability End Caps NX supplied with Distance Block


Permeability end caps used with ELE-Hoek Cells and constant pressure systems are a cost-effective solution suited to investigating the permeability of rock at high confining pressures in the laboratory. To collect and measure the water which permeates through the rock specimen, a suitable burette such as 25-4540 is recommended. Each permeability end cap incorporates a tubing connector which accepts standard 6 mm tubing, 26-1926, used to connect the cell to the pressure system and burette.
