45-6829/02
Category:
Asphalt
Sub Category:
Design and Testing of Bituminous Mixtures, Marshall Stability and Flow
Product Group:

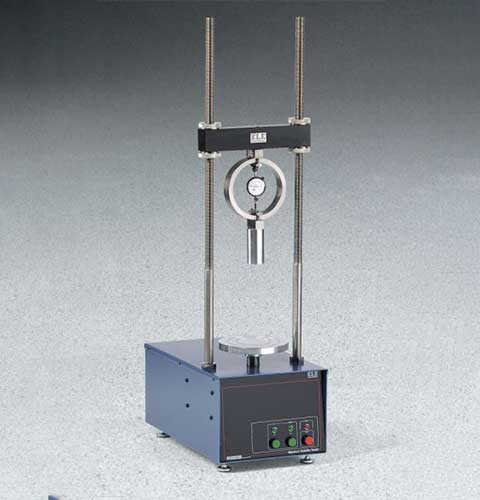

Marshall Stability Tester
Compact size takes up little counter space in the lab.
Push-button operation controls movement of load screw. Indicator lights show when unit is running and when test limit or maximum travel is reached.
The Marshall Stability Tester quickly and accurately measures the resistance to plastic flow of bituminous mixtures, in accordance with ASTM D-6927 and AASHTO T-245 testing standards.
With operator convenience in mind, the machine features push-button operation with indicator lights to show when the unit is in operation and when the platen has reached its limit or point of maximum travel.
110 V, 60 Hz, 1Ph
| Rated Power | 110vAC, 60 Hz, 1ø. |
| ASTM D6927 | Yes |
| AASHTO T245 | Yes |
| Description | Marshall Stability Tester |
| Frame Capacity | 10,000 lbf. (44 .5 kN) maximum. |
| Proving Ring | up to 10,000 lbf. (sold separately) |
| Controls | Push-button up/down/stop with running and limit indicator lights. |
| Motor | 3/4 h.p., reversible. |
| Speed | 2” (50.8 mm) per minute. |
| Travel | 2.5” (64 mm) maximum. |
| Clearances | 10” (254 mm) between uprights, 7-1/2” (191 mm) between platen and load piston. |
| Overall Dimensions | 14 ” w. x 23 ” d. x 40” h. (35 6 x 584 x 1,016 mm). |
| Housing | 14 ” w. x 23 ” d. x 11 ” h. (35 6 x 584 x 279 mm). |
| Weight | Net 189 lbs. (86 kg); Shpg. 236 lbs. (107 kg). |
