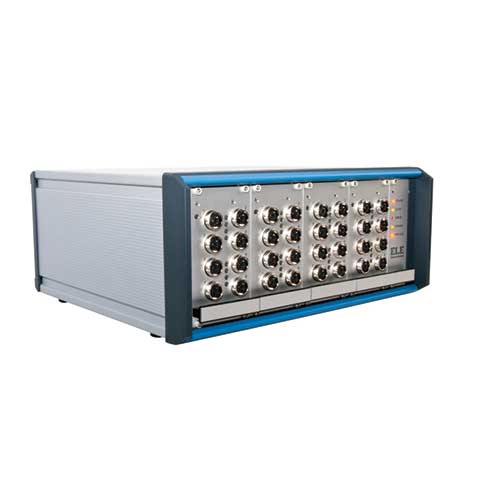

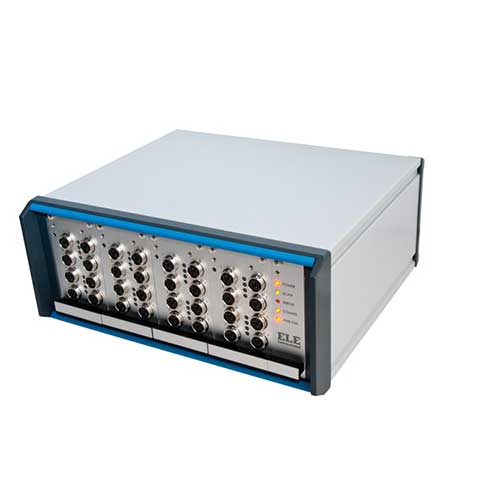

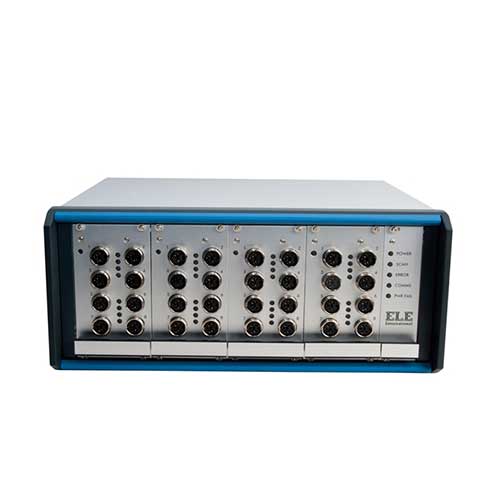

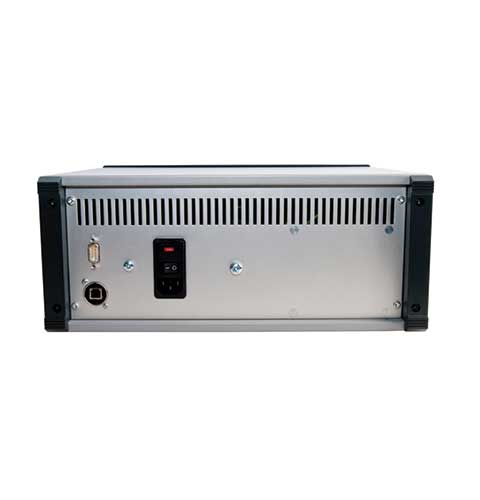

The GDU is a stand-alone, multi-tasking, multi-channel data logger, that is reliable and powerful, enabling it to co-ordinate test data from the range of ELE transducers required for various test methods.
The ELE Geotechnical Software package (DS7.1 and following), in conjunction with the GDU and a range of transducers, are the two central components required to create a modern turnkey soil testing system. Being fully modular it can be adapted to a wide range of soil testing laboratory configurations.
• For performing CBR, Consolidation, Direct/Residual Shear and Total & Effective Stress Triaxial tests
• 8 Channels expandable to 32 for performing multiple, concurrent tests for cost savings
• Independent signal conditioning on each channel to maintain data accuracy
• Field-upgradeable software, meaning no downtime for future software and functionality upgrades
• PC link via RS232 (DS7.1 only), or RS232 and Ethernet P2P/LAN (with DS7.2 and following)
• Extended warranty
| Description | GDU 8 channel data acquisition unit |
| Transducer Supply | 10vDC. |
| Voltage Supply | 220-240 V 50/60 Hz |

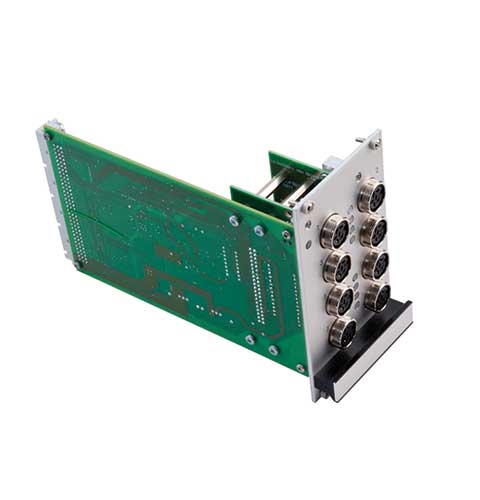

| Case | Aluminum, free standing; houses power supply, analog to digital conversion module and an 8-channel analog input module with transducer energization. |
| Sockets | Standard 5-pin DIN type. |
| Input Range | ± 5 volts to ± 10 mV full scale. |
| Transducer Supply | 10vDC. |
| Dimensions | 12.8” w. x 14.3” d. x 6.1” h. (325 x 363 x 155 mm). |
| Weight | Net 14.08 lbs. (6.4 kg). |
