78-0135/01
Category:
Moisture Content
Sub Category:
N/A
Product Group:
Oven Drying Method

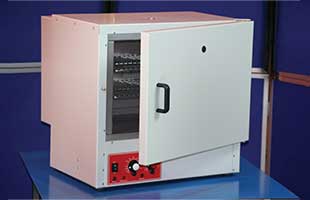

This oven is designed for drying large quantities of soils and aggregate samples and maintains the temperature in accordance with BS EN and ASTM requirements.
The oven is constructed of mild steel with a powder coated exterior and an aluminium coated steel chamber which is both durable and corrosion resistant.
The control system comprises of a microprocessor digital controller with overheat safety system. They also include main switch with indicator and heat and overheat indicators.
The temperature range is 40-180ºC.
Fan-circulated, supplied with 4 shelves
| Description | Drying Oven |
| Capacity, litres | 425 |
| No. of shelves supplied | 4 |
| No. of shelf positions | 5 |
| Temperature Fluctuation | +/- 0.75 °C |
| Internal Dimensions (length x width x height) mm | 640 x 920 x 760 mm |
| Temperature Range °C | 0 - 200 °C |
| Voltage Supply | 220-240 V 50/60 Hz |
| EN 12697-32 | Yes |
| EN 13280-4 | Yes |
| BS 598-104 | Yes |
| BS 1377 | Yes |
| Capacity | 425 litres |
| External Dimensions (h x w x d) | 970 x 1410 x 810 mm |
| Internal Dimensions (h x w x d) | 760 x 920 x 640 mm |
| Fluctuation | ± 0.75°C |
| Rated power heater elements | 2000 W |
| Shelves supplied | 4 |
| Shelf positions | 5 |
| Weight | 185 kg |
78-1250/01
The Drying Ovens are designed for drying large quantities of soils and aggregate samples and maintains temperature in accordance with BS and ASTM requirements. Fan assisted circulation Manual overheat reset Low temperature uniformity
