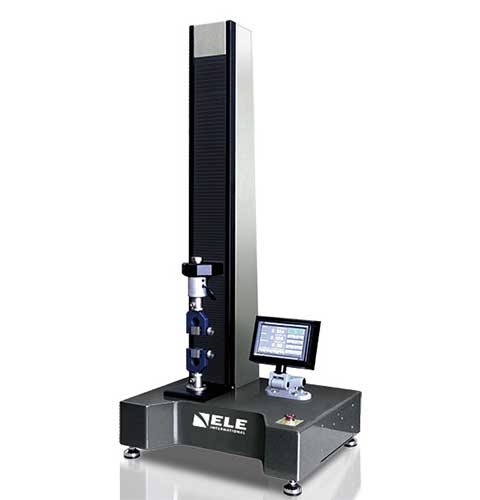

Electronic Type Universal Testing Machine 300 kgf (3kN)

« return

Electronic Type Universal Testing Machine 300 kgf (3kN)

36-2415/05

Category:

Universal Testing Machines

Sub Category:

N/A

Product Group:

Electronic Type Universal Testing Machines

ELE's series of UTM's test physical characteristics of various materials such as metal, plastic, bio, composite materials, wire, paper and film, rubber, small automobile parts, electronic equipment, aerospace, fibre etc.

Features:

  • Single column electro mechanical table top model
  • High precision load cell
  • 1/50,000 force resolution /0.01mm/min speed accuracy
  • 0.01~500mm/min speed
  • Overload protection limit sensor
  • Emergency power cut off button
  • Up to 4 step division of force capacity for more detailed readings

Software features:

  • Close loop. Control of load, displacement, extension, stress and strain.
  • Remote control via software, text execution, data analysis available through RS-232 port
  • Software updates and modification installation available via email or remote support
  • Diverse and robust configurations for automatic test end options, graph options, PID values, crosshead movement speeds etc.
  • 15+ different Testing Methods including cyclic, creep, relaxation, keeping etc.
  • View data and graphs of previously ran tests
  • Determine and analyze data points such as yield point, breaking point, modulous etc.
  • Raw data analysis for detailed test data
  • Exportable to excel and customizable to show user required data
  • Test report printing options include direct to printer or excel file export.
  • Test report data can be configured to show only necessary data and to exclude unused data.
Description Electronic Type Universal Testing Machine 300 kgf (3kN)
Frame Capacity 300 kgf (3kN)
Max tension range  300 kgf (3kN)
Force resolution  1/50,000
Stroke resolution  0.01 mm
Load range  2 steps (3000N/ 300N)
Colum style Single
Controller LCD controller
Total weight  70 kg
Dimensions (w x d x h) 650 x 450 x 1250 mm
