78-0760
Category:
Compaction & CBR Test Equipment, Soil Strength (Triaxial), Data Logging, Software and Electronic Instrumentation, Load Measurement, Soils, Laboratory Equipment
Sub Category:
California Bearing Ratio, In-situ CBR, Measurement instrumentation, Instrumentation for Triaxial testing, Compaction and CBR, CBR, Soil Strength (Triaxial), Triaxial Load Frames, Load Measurement, Proving Rings
Product Group:
Clamped Boss Load Rings, Digital Tritest 50 Load Frame, Load Measurement, Proving Rings, CBR-Test 50 Machine, Conversion of In-situ to Laboratory CBR, Load Measurement, CBR Loading Press, Hand-Operated, Force measurement

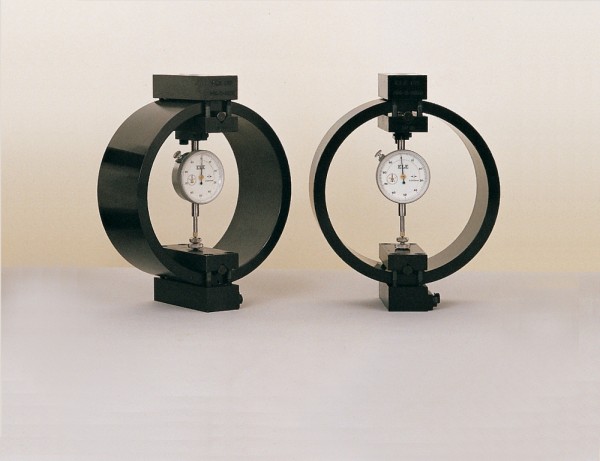

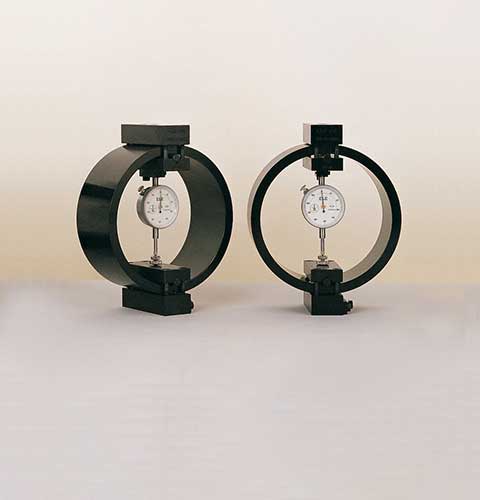

| Description | Load ring - 28 kN |
| Value of CBR % | Average range of CBR |
| Load device type | Load ring |
| Force Capacity, kN | 28 |
| Overall Height, mm | 248 |
| BS 1377 | Yes |
| BS 1924 | Yes |
| ASTM D4429 | Yes |
| Capacity: kN, kgf, lbf | 28.0, 2800, 6000 |
| Typical Design sensitivity: N/div, kgf/div, lbf/div | 25.5, 2.54, 5.45 |
| Overall height mm | 248 |
| Approx weight kg | 5.4 |
| Capacity | 28 kN |
| Value of CBR | Average range of CBR |
| Capacity - lbf | 6,000 |
| Capacity - kN | 28 |
| Capacity - kgf | 2,800 |
| Typical Design Sensitivity - lbf/div | 5.45 |
| Typical Design Sensitivity - N/div | 25.5 |
| Typical Design Sensitivity - Kgf/div | 2.54 |
| Overall Height | 9.76” (248 mm) |
| Approx Weight | 11 .9 lbs.(5.4 kg) |
