25-4117
Category:
Soil Strength (Triaxial), Soils
Sub Category:
Soil Strength (Triaxial), Triaxial Cells
Product Group:
Triaxial Cell, Triaxial Cells
• Working pressure up to 1700 kPa
• All round visibility
• Sample sizes 38 to 100 mm diameter
• Rapid assembly and dismantling
• Accepts a range of interchangeable submersible load transducers

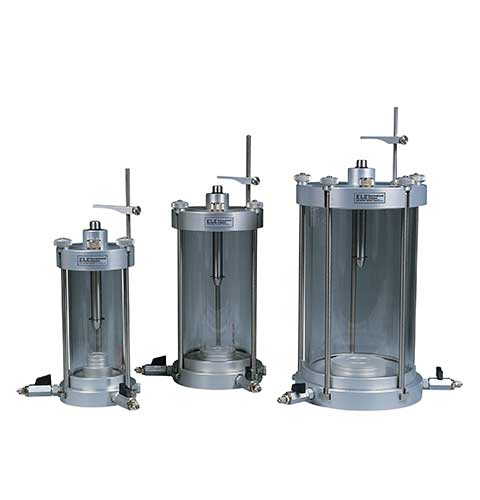

This range of precision made triaxial cells has been designed to meet the requirements of the modern soils laboratory. The cells have been treated to minimise corrosion. Particular attention has been paid to the quality of finish between the piston and the head. Final assembly includes the fitting of an O-ring seal and the use of special lubricant to reduce friction to a minimum and eliminate water leakage.
The piston load capacity is designed to accept high horizontal forces which may be present during the final stages of a test. Each cell has five take-off positions drilled in the base for top drainage/back pressure, pore water pressure and bottom drainage. Two no-volume change valves and an anvil for strain gauge/transducer datum are supplied for fitting to the cell.
A feature of these cells is that they all accept a single diameter piston. The internal height is such that a range of submersible load transducers can be fitted without any modification. Each cell will accept a range of base adaptors and various accessories for testing a wide range of specimens
| Cell Size | 70 mm |
| Weight, kg | 7.3 kg |
| Maximum Specimen Size | 70 x 140 mm |
| Vertical Clearance Required | 430 mm |
| Horizontal Clearance Required | 180 mm |
| Description | Triaxial Cell - 70 mm |
| 100 mm Sample | - |
| 38 mm Sample | - |
| 50 mm Sample | Yes |
| 70 mm Sample | Yes |
| Maximum Pressure, psi | 250 |
| BS 1377 | Yes |
| ASTM D2850 | Yes |
| ASTM D4767 | Yes |
| ASTM D7181 | Yes |
| AASHTO T296 | Yes |
| AASHTO T297 | Yes |
| Cell size | 70 mm |
| Max specimen size | 70 x 140 mm |
| Working pressure | 1701 kPa |
| Max piston load | 46 kN |
| Vertical clearance required | 430 mm |
| Horizontal clearance required | 180 mm |
| Weight kg | 7.3 |
| Maximum Working Pressure | 25 0 psi (1,700 kPa). |
| Maximum Piston Load | 10,100 lbf. (45 kN). |
| Maximum Specimen Size | 2.8” (70 mm) diam. x 5.6” (14 0 mm) l. |
| Required Clearance | 17” (43 0 mm) vertical; 7.1” (180 mm) horizontal. |
| Weights | Net 16 lbs. (7.3 kg). |
25-0695
n with Viton diaphragm and O-rings. Supplied with all necessary valves and tubing. The Pressure Interface Chamber (PIC) is used during permeability test application involving toxic permeants. The chambers provide a closed system for toxic liquids entering and exiting the test cell. Weight: 5.5 kg (net 12 lbs)
25-6430
have two empty ports and will come complete with two blanking plugs, plastic tubing and connector. Suitable For both drained and undrained tests.
25-4157

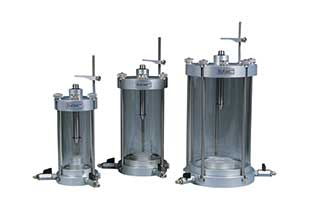

• Working pressure up to 1700 kPa• All round visibility• Sample sizes 38 to 100 mm diameter• Rapid assembly and dismantling• Accepts a range of interchangeable submersible load transducersThis range of precision made triaxial cells has been designed to meet the requirements of the modern soils laboratory. The cells have been treated to minimise corrosion. Particular attention has been paid to the quality of finish between the piston and the head. Final assembly includes the fitting of an O-ring seal and the use of special lubricant to reduce friction to a minimum and eliminate water leakage.The piston load capacity is designed to accept high horizontal forces which may be present during the final stages of a test. Each cell has five take-off positions drilled in the base for top drainage/back pressure, pore water pressure and bottom drainage. Two no-volume change valves and an anvil for strain gauge/transducer datum are supplied for fitting to the cell.A feature of these cells is that they all accept a single diameter piston. The internal height is such that a range of submersible load transducers can be fitted without any modification. Each cell will accept a range of base adaptors and various accessories for testing a wide range of specimens
25-4047
• Working pressure up to 1700 kPa• All round visibility• Sample sizes 38 to 100 mm diameter• Rapid assembly and dismantling• Accepts a range of interchangeable submersible load transducersThis range of precision made triaxial cells has been designed to meet the requirements of the modern soils laboratory. The cells have been treated to minimise corrosion. Particular attention has been paid to the quality of finish between the piston and the head. Final assembly includes the fitting of an O-ring seal and the use of special lubricant to reduce friction to a minimum and eliminate water leakage.The piston load capacity is designed to accept high horizontal forces which may be present during the final stages of a test. Each cell has five take-off positions drilled in the base for top drainage/back pressure, pore water pressure and bottom drainage. Two no-volume change valves and an anvil for strain gauge/transducer datum are supplied for fitting to the cell.A feature of these cells is that they all accept a single diameter piston. The internal height is such that a range of submersible load transducers can be fitted without any modification. Each cell will accept a range of base adaptors and various accessories for testing a wide range of specimens
27-1620

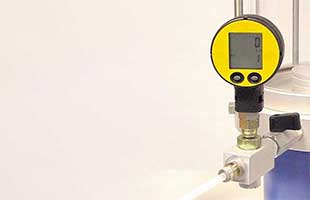

For ELE Triaxial Cells. The Digital Pressure Gauge offers highly accurate pressure measurement and digital readout for ELE triaxial cells.
