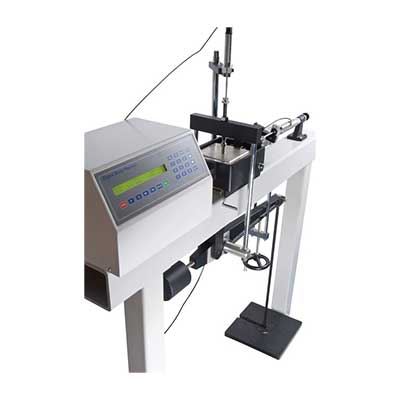

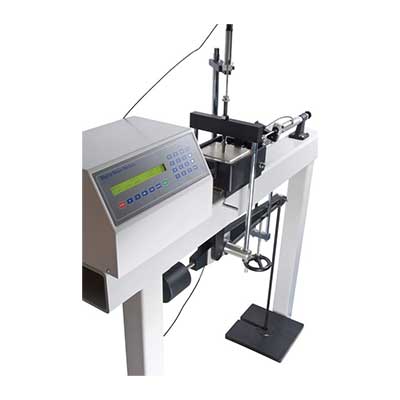

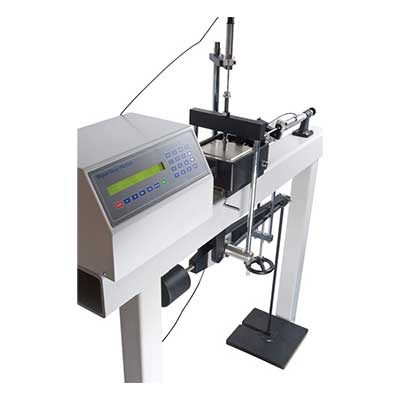

DataSystem Direct/Residual Shear Test Set

This test set includes equipment required to perform direct/residual shear testing on either 2.5” diameter or 60 mm square soil specimens with automated data logging, analysis, and reporting.

Computer hardware and peripherals required for system operation; not included. Contact factory for system requirements.

See Data Aquisition section for specifications of electronic displacement and logging equipment.

DataSystem Direct/Residual Shear Test Set 220vAC English

Set includes:
1 Direct/Residual Shear Apparatus (26-2114/0x).
1 2.5” diam. or 60 mm square Shear Box (26-2213 or 26-2181).
1 2.5” diam. or 60 mm square Specimen Cutter (26-2217 or 26-2185).
1 2.5" dia. or 60 mm square Specimen Extrusion Tool (26-2189 or 26-2221).
1 GDU 8-Channel Geotechnical Data Unit (27-1500/0x).
1 Direct/Residual Shear Software (27-1790).
1 Vertical Displacement Transducer (27-1689).
1 Horizontal Displacement Transducer (27-1697).
1 2,000 lb. (8.9 kN) S-Type Load Cell (27-1583).
1 Weight Set (25-0535).

info »

2102/01

DataSystem Direct/Residual Shear Test Set 110vAC English

Set includes:
1 Direct/Residual Shear Apparatus (26-2114/0x).
1 2.5” diam. or 60 mm square Shear Box (26-2213 or 26-2181).
1 2.5” diam. or 60 mm square Specimen Cutter (26-2217 or 26-2185).
1 2.5" dia. or 60 mm square Specimen Extrusion Tool (26-2189 or 26-2221).
1 GDU 8-Channel Geotechnical Data Unit (27-1500/0x).
1 Direct/Residual Shear Software (27-1790).
1 Vertical Displacement Transducer (27-1689).
1 Horizontal Displacement Transducer (27-1697).
1 2,000 lb. (8.9 kN) S-Type Load Cell (27-1583).
1 Weight Set (25-0535).

info »

2102/02

DataSystem Direct/Residual Shear Test Set 220 vAC Metric

Set includes:
1 Direct/Residual Shear Apparatus (26-2114/0x).
1 2.5” diam. or 60 mm square Shear Box (26-2213 or 26-2181).
1 2.5” diam. or 60 mm square Specimen Cutter (26-2217 or 26-2185).
1 2.5" dia. or 60 mm square Specimen Extrusion Tool (26-2189 or 26-2221).
1 GDU 8-Channel Geotechnical Data Unit (27-1500/0x).
1 Direct/Residual Shear Software (27-1790).
1 Vertical Displacement Transducer (27-1689).
1 Horizontal Displacement Transducer (27-1697).
1 2,000 lb. (8.9 kN) S-Type Load Cell (27-1583).
1 Weight Set (25-0535).

info »

2103/01

DataSystem Direct/Residual Shear Test Set 110vAC Metric

Set includes:
1 Direct/Residual Shear Apparatus (26-2114/0x).
1 2.5” diam. or 60 mm square Shear Box (26-2213 or 26-2181).
1 2.5” diam. or 60 mm square Specimen Cutter (26-2217 or 26-2185).
1 2.5" dia. or 60 mm square Specimen Extrusion Tool (26-2189 or 26-2221).
1 GDU 8-Channel Geotechnical Data Unit (27-1500/0x).
1 Direct/Residual Shear Software (27-1790).
1 Vertical Displacement Transducer (27-1689).
1 Horizontal Displacement Transducer (27-1697).
1 2,000 lb. (8.9 kN) S-Type Load Cell (27-1583).
1 Weight Set (25-0535).

info »

2103/02
