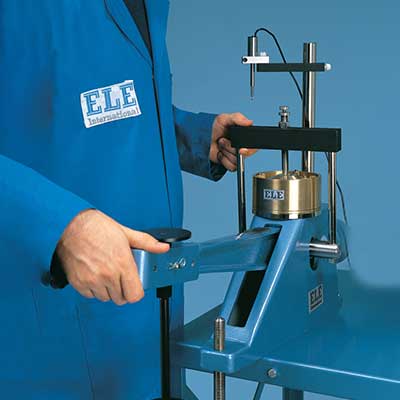

The DataSystem Consolidation Test Set is designed for performing consolidation tests on soils to ASTM and AASTHO standards including options for automated data logging, analysis, and reporting.
Computer hardware and peripherals required for system operation; not included. Contact factory for system requirements.
See Data Aquisition section for specifications of electronic displacement and logging equipmnent.
Set includes:
1 Table Top Consolidation Apparatus (25-0402).
1 Fixed Ring Consolidometer, 2.5” (25-0479).
1 Weight Set (25-0535).
1 Floor Mounting Stand (25-0429).
1 GDU 8-Channel Geotechnical Data Unit (27-1500/01).
1 Consolidation Displacement Transducer (27-1649).
1 One Dimensional Consolidation Program (27-1770).
Set includes:
1 Table Top Consolidation Apparatus (25-0402).
1 Fixed Ring Consolidometer, 2.5” (25-0479).
1 Weight Set (25-0535).
1 Floor Mounting Stand (25-0429).
1 GDU 8-Channel Geotechnical Data Unit (27-1500/02).
1 Consolidation Displacement Transducer (27-1649).
1 One Dimensional Consolidation Program (27-1770).
