Core Drill Bits

• Bit sizes ranging from 3" to 6-1/4" (76 to 158.7 mm).
• Obtain cores up to 14" (356 mm) long.
• Both closed-end and open-end drill bits are available.

The open-end bits must be used with the expanding adpaters. The adapters are especially designed for fast, easy attachment of the bit to the drilling machine and easy removal of cores that may stick to the interior of the bit.

The closed-end bits include an integral threaded adapter.

Open End Drill Bit, 3" Diameter

For taking core with diameter of 2-3/4" (69.8 mm). Requires use of 3" Expanding Adapter.

info »
47-5694

Closed End Drill Bit, 3" Diameter

For taking core with diameter of 2-3/4" (69.8 mm)

info »
47-5695

Open End Drill Bit, 3-1/2" Diameter

For taking core with diameter of 3-1/4" (82.5 mm). Requires use of 3-1/2" Expanding Adapter.

info »
47-5696

Closed End Drill Bit, 3-1/2" Diameter

For taking core with diameter of 3-1/4" (82.5 mm)

info »
47-5697

Open End Drill Bit, 4" Diameter

For taking core with diameter of 3-3/4" (95.2 mm). Requires use of 4" Expanding Adapter.

info »
47-5698

Closed End Drill Bit, 4" Diameter

For taking core with diameter of 3-3/4" (95.2 mm)

info »
47-5699

Open End Drill Bit, 4-1/4" Diameter

For taking core with diameter of 4" (101.6 mm). Requires use of 4-1/4" Expanding Adapter.

info »
47-5700

Closed End Drill Bit, 4-1/4" Diameter

For taking core with diameter of 4" (101.6 mm)

info »
47-5701

Open End Drill Bit, 6-1/4" Diameter

For taking core with diameter of 6" (152.4 mm). Requires use of 6-1/4" Expanding Adapter.

info »
47-5706

Closed End Drill Bit, 6-1/4" Diameter

For taking core with diameter of 6" (152.4 mm)

info »
47-5707

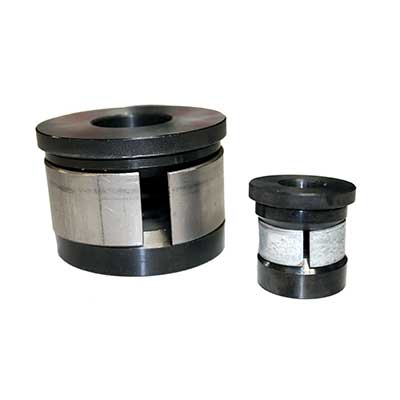

Expanding Adapter for 4" Open End Bit

info »
47-5658

Expanding Adapter for 4-1/4" Open End Bit

info »
47-5660

Expanding Adapter for 6-1/4" Open End Bit

info »
47-5666

Expanding Adapter for 3" Open End Bit

info »
47-5654

Expanding Adapter for 3-1/2" Open End Bit

info »
47-5656
