25-3518/02
Category:
Compaction & CBR Test Equipment, Soils
Sub Category:
California Bearing Ratio, Soil Strength (Triaxial), Triaxial Load Frames
Product Group:
Digital Tritest 50 Load Frame, CBR Load Frames
110V, 50/60 Hz, 1Ph, 300 Watts.
See Data Acquisition section for electronic load and strain measurement options.
| Voltage Supply | 110-20V 50/60 Hz |
| CBR Penetration | Yes |
| Unconfined Compression | Yes |
| Unconfined Compression | Yes |

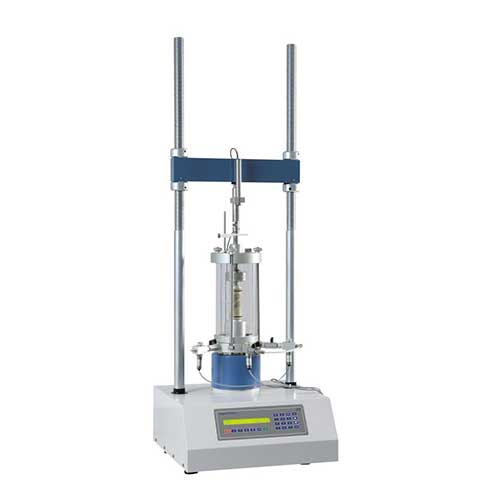

| Description | Digital Tritest 50 Load Frame |
| Capacity, lbf | 11,200 |
| ASTM D1883 | Yes |
| ASTM D2166 | Yes |
| ASTM D2850 | Yes |
| ASTM D4767 | Yes |
| ASTM D7181 | Yes |
| AASHTO T99 | Yes |
| AASHTO T134 | Yes |
| AASHTO T135 | Yes |
| AASHTO T136 | Yes |
| AASHTO T180 | Yes |
| AASHTO T193 | Yes |
| AASHTO T208 | Yes |
| AASHTO T296 | Yes |
| AASHTO T297 | Yes |
| Capacity | 11 ,200 lbf. (50 kN). |
| Speed Range | English mode: 0.000001 to 0.399999 in/min. Metric mode: 0.00001 to 9.99999 mm/min. |
| Rapid Approach Speed | 1.0 in/min. (25 mm/min.). |
| Platen Travel | 3.9” (100 mm); limit switch protection. |
| Platen Diameter | 5.2" (133mm). |
| Vertical Clearance | 35 .8” (910 mm) maximum; 12 ” (305 mm) minimum. |
| Horizontal Clearance | 14 .3” (364 mm). |
| Serial Interface | RS232 C; programmable baud rate and protocol. |
| Overall Dimensions | 19.7” w. x 19.7” d. x 57.8” h. (500 x 500 x 1,470 mm). |
| Weight | Net 220 lbs. (100 kg); Shpg. 300 lbs. (136 kg). |
25-3700/01
Compact bench mounting load frame designed for performing laboratory CBR, unconfined compression, Quick Undrained Triaxial and Marshall Stability Tests. Has a variable speed of 0.5 to 50.8mm per minute and features rapid approach of platen. 220-240 V, 50/60 Hz
