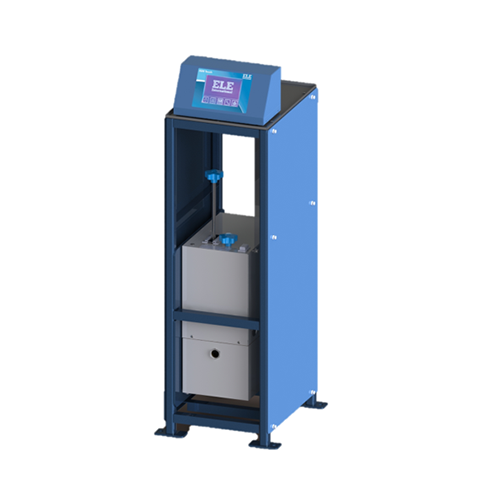

ADR Touch Manual Power Pack Including Fitting Kit 220-240V 50/60Hz 1Ph

« return

ADR Touch Manual Power Pack Including Fitting Kit 220-240V 50/60Hz 1Ph

36-6165/01

Category:

Flexural and Transverse Machines and Accessories

Sub Category:

N/A

Product Group:

Manual Power Packs

For use with ELE Compression and Flexural Frames;

37-6130: 100kN Flexural (beams) Frame

37-6140: 100kN Flexural and Transverse (flags) Frame.

39-6120: 250/25 kN Compression Frame.

Description ADR Touch Manual Power Pack Including Fitting Kit 220-240V 50/60Hz 1Ph

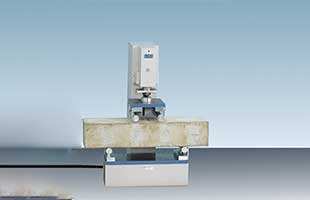

100kN Flexural (Beams) Frame. Supplied Without Specimen Bearers and Fitting Kit.

37-6130

Open sided for ease of specimen loading Meets EN 12390-5 (BS 1881-118), EN 1521, EN 13161, EN 772-6, ASTM C78/C78M, ASTM C293/C293, AASHTO T97, AASHTO T177 standards Optional ball seating assembly This rigidly constructed, open sided frame is suitable for testing 100 mm and 150 mm square-section beams. The frame supports a hydraulic ram and upper sub-platen assembly incorporating a spherical seating. The upper and lower sub-platens will accept various specimen loading bearers, which are supplied separately. Please note, a flexural fitting kit is required, see the accessories tab for options.

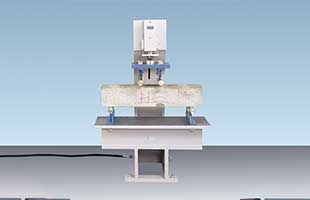

100kN Flexural and Transverse (Flags) Frame. Supplied Without Specimen Bearers and Fitting Kit.

37-6140

• Open sided for ease of specimen loading• Meets EN 1339, 1340 for kerbs and flagstones• Optional ball seating assemblyThis rigidly constructed, open sided frame is suitable for testing kerbs and flagstones to EN 1339,1340. With optional accessories it can also be used to test 100 mm and 150 mm section beams for flexural strength to EN 12390-5.The frame supports a hydraulic ram and upper sub-platen assembly incorporating spherical seating. The upper and lower sub-platens will accept specimen loading bearers, which are supplied separately.
