100kN Flexural and Transverse (Flags) Frame. Supplied Without Specimen Bearers and Fitting Kit.

37-6140

Category:

Flexural and Transverse Machines and Accessories

Sub Category:

N/A

Product Group:

Flexural and Transverse Testing

• Open sided for ease of specimen loading
• Meets EN 1339, 1340 for kerbs and flagstones
• Optional ball seating assembly

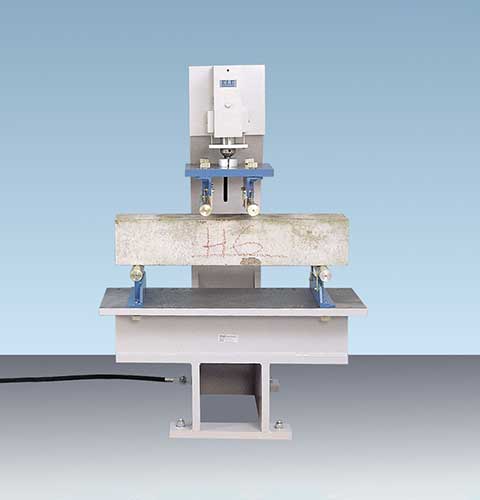

This rigidly constructed, open sided frame is suitable for testing kerbs and flagstones to EN 1339,1340. With optional accessories it can also be used to test 100 mm and 150 mm section beams for flexural strength to EN 12390-5.

The frame supports a hydraulic ram and upper sub-platen assembly incorporating spherical seating. The upper and lower sub-platens will accept specimen loading bearers, which are supplied separately.

**Not available for sale in the USA**

Description 100kN Flexural and Transverse (Flags) Frame
Dimensions (l x w x h) 840 x 845 x 1215 (mm)
Vertical clearance with bearers 170 mm
Throat clearance  330 mm
Ram travel 330 mm
Weight  460 kg




100 kN Flexural Fitting Kit ADR Auto for 220 - 240 V AC, 60 Hz, 1 ph

37-6135/06

e of ELE compression machines. Simply select one of two fitting kits designed to link the flexural frame to either the ADR-Auto range of compression machines or any other ADR compression machine.

100kN Flexural Fitting Kit (ADR) Used for Connecting Flexural Frames to ADR Compression Machines.

37-6138

e of ELE compression machines. Simply select one of two fitting kits designed to link the flexural frame to either the ADR-Auto range of compression machines or any other ADR compression machine.

Change over valve assembly kit for 230V, 50/60Hz

37-0011/01

on or flexural load frame to the ADR automatic range of compression machines.

Specimen Bearer Assembly

37-6330

self-aligning and 1 fixed lower roller bearer. Roller bearers are 38 mm dia x 320 mm long and suitable for 3- or 4-point flexural testing of beams. Complies to EN 12390-5 (BS 1881-118), EN 1521, EN 13161, EN 722-6.

ADR Touch Manual Power Pack Including Fitting Kit 220-240V 50/60Hz 1Ph

36-6165/01

For use with ELE Compression and Flexural Frames; 37-6130: 100kN Flexural (beams) Frame 37-6140: 100kN Flexural and Transverse (flags) Frame.  39-6120: 250/25 kN Compression Frame.
