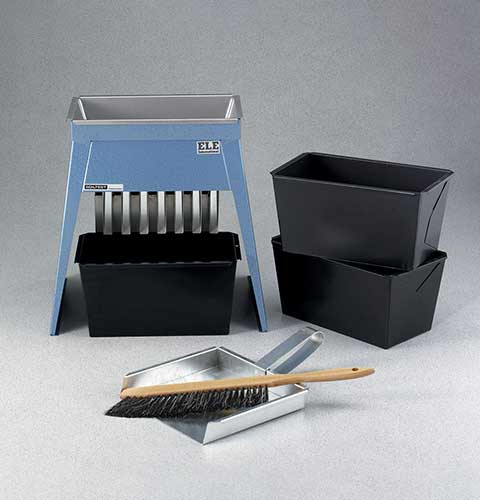

Sample Splitter (Riffle Box) - 8 chutes, 2” (51 mm) chute width

Pan for Sample Splitters 23-3152 and 23-3302

23-3152/10

Scoop pan for Sample Splitters 23-3152 and 23-3302

4699-1805

Large Capacity Sample Splitter.

23-3425

The splitter is designed for the reduction of test samples which are too large in volume to be conveniently handled. It divides samples so that half is respresentative of the original total sample and handles material up to 6 inches in particle size. The lever-actuated unit is constructed of heavy gauge welded steel with a hopper which holds up to 1 cuft. The single splitter chute provides wide flexibility in sizes of opening and adjustment is provided for chutes of 0.5, 1.5, 2, 3, 4 or 6 inch by positioning of the chute bars. Overall height is approximately 1 meter. Hopper size 735 mm long x 480 mm wide (approx). Standards: EN 933-3 ASTM C136 NF P18-553 UNI 8520 AASHTO T27 AASHTO T87 BS 812:1 BS 1377:2 BS 1924:1 UNE 83120

Sample Splitter (Riffle Box) - 14 chutes, 1/2” (13 mm) chute width

23-3052

Sample Splitter (Riffle Box) - 14 chutes, 3/4” (19 mm) chute width

23-3102

Sample Splitter (Riffle Box) - 16 chutes, 1” (25 mm) chute width

23-3152

Sample Splitter (Riffle Box) - 8 chutes, 2-1/2” (64 mm) chute width

23-3352

Table Brush

88-7810
