532-180/01
Category:
Soils
Sub Category:
Soil Physics
Product Group:
Pressure plate extractors
Ideal for pressure plate extraction systems.
Electrically powered and fully CE accredited
Conforms to EC directive 98/37/CE

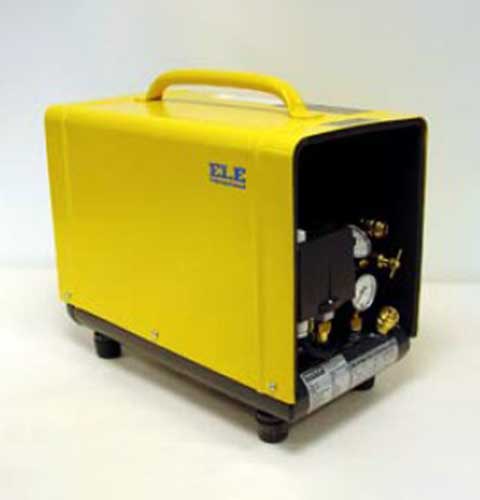

This unit provides compressed air for all ELE's pressure plate apparatus. The compressor is designed for sustained, continuous operation and provides up to 20 bar operating pressure.
These compressors are compact and can be transported easily by one person. The compressor consists of motor and block, which is cast in one piece. This improves heat dissipation considerably. Pistons, piston rings, con-rod, bearings and crank flange have been designed with efficiency and durability in mind. Valves in the compressor block are machined in non-corrosive stainless steel and the valve reeds are fitted with heat dissipating lift limiters. This ensures air-tight valves and longer life.
The robust electric motor features strengthened bearings and a generously-sized winding. This lengthens motor life considerably. The motors start without problem even if the supply voltage is low.
Every compressor is filled with special, temperature resistant top performance lubricating fluid. The result is almost no oil carbon deposits on the valves.
This compressor must be used in conjunction with a manifold assembly if intended for use in pressure plate extraction systems.
| Description | Compressor |
| Max. gauge working pressure | 20 bar |
| Weight | 29.5 kg |
| Dimensions | 525 x 260 x 430 mm |
| Air receiver capacity | 4 litres |
| Highest sound pressure value | 75 dB when tested to DIN 45635 |
| Theoretical inlet capacity | 160 l/ min |
| Free air delivered | 20 bar (at 8 bar working pressure) |
| No. of cylinders | 1 |
| Speed | 2850 rpm |
| Oil capacity | 0.13 l |
| Oil top-up quantity | 0.05 l |
| Max. mains fusing (slowblow or gl glass) | 16 amp |
| Max. rated current | 6.2 amp |
| Rated power | 1.1 kW |
| Rated speed | 2850 rpm |
| Protection class | IP54 |
| Max. cut-in frequency | 30 times / hour |
